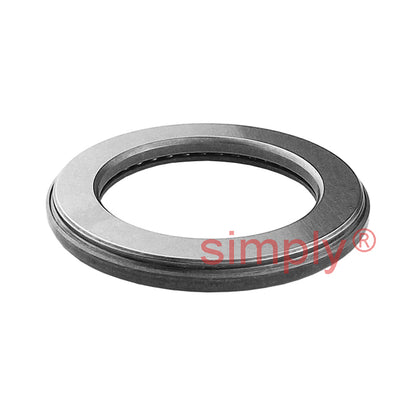

Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm
Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm
Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm
Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm

SKU: AX41022-MB

Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm

€47.66 ex VAT
€47,66
ex VAT
In stock

Quantity Price Breaks

10 €42.42
19 €40.03
29 €39.56
39 €39.08
49 €38.60
74 €38.13
99 €35.75
199 €35.27
249 €34.79
499 €34.32
999 €33.36
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm
Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm
SKU: AX41022-MB

Major Brand AX41022 Thick Needle Roller Thrust Bearing 10x22x4mm

€47.66 ex VAT
€47,66
ex VAT

Description

AX Thick Series Needle Roller Thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with the CP series thrust washers which are supplied separately. They are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing

Technical

Dc1 = 10mm
D = 22mm
B1 = 4mm
Eb = 12mm
Ea = 18.6mm
Dynamic load = 5 kN
Static load = 10.9 kN
Speed rating in oil = 15500 rpm
Mass = 0.007 kg
