SKU: AXK100135-MB

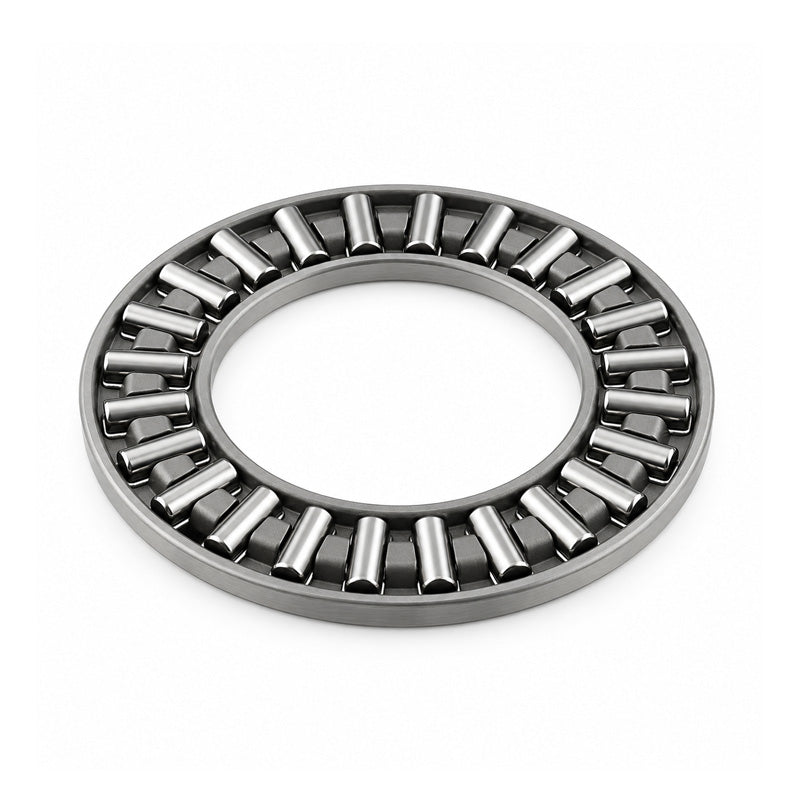

AXK100135 Major Branded Needle Roller Cage 100x135x4mm
- Regular price
- €52.56 ex VAT
- Sale price
- €52,56
- Regular price
-
In stock
Quantity Price Breaks
10
€46.78
19
€44.15
29
€43.62
39
€43.10
49
€42.57
74
€42.05
99
€39.42
199
€38.89
249
€38.37
499
€37.84
999
€36.79
SKU:
AXK100135-MB
AXK100135 Major Branded Needle Roller Cage 100x135x4mm
- Regular price
- €52.56 ex VAT
- Sale price
- €52,56
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 100mm |
| D | = | 135mm |
| Dw | = | 4mm |
| Ea | = | 105mm |
| Eb | = | 133mm |
| Dynamic load | = | 76500 N |
| Static load | = | 560000 N |
| Fatigue load limit Pu | = | 65500 N |
| Speed in grease | = | 850 rpm |
| Speed in oil | = | 1200 rpm |
| Weight (assembly) | = | 105 g |
| d1 | = | 135mm |
| D | = | 135mm |
| D1 | = | 102mm |
| B | = | 7mm |
