SKU: AXK120155-MB

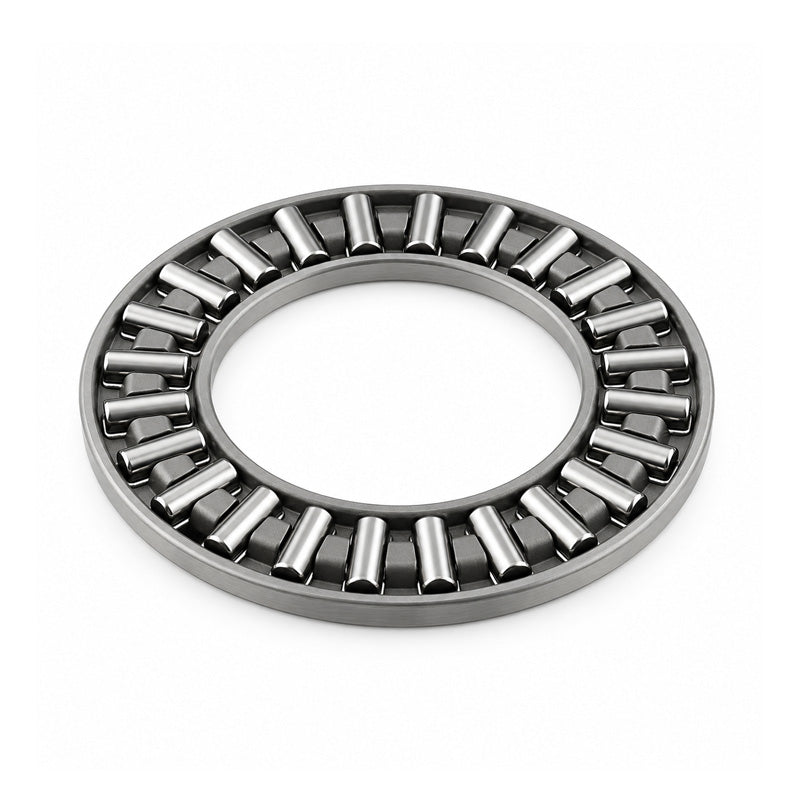

AXK120155 Major Branded Needle Roller Cage 120x155x4mm
- Regular price
- €88.19 ex VAT
- Sale price
- €88,19
- Regular price
-
In stock
Quantity Price Breaks
10
€78.49
19
€74.08
29
€73.20
39
€72.32
49
€71.43
74
€70.55
99
€66.14
199
€65.26
249
€64.38
499
€63.50
999
€61.73
SKU:
AXK120155-MB
AXK120155 Major Branded Needle Roller Cage 120x155x4mm
- Regular price
- €88.19 ex VAT
- Sale price
- €88,19
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 120mm |
| D | = | 155mm |
| Dw | = | 4mm |
| Ea | = | 125mm |
| Eb | = | 153mm |
| Dynamic load | = | 86500 N |
| Static load | = | 680000 N |
| Fatigue load limit Pu | = | 76500 N |
| Speed in grease | = | 800 rpm |
| Speed in oil | = | 1100 rpm |
| Weight (assembly) | = | 130 g |
| d1 | = | 145mm |
| D | = | 155mm |
| D1 | = | 122mm |
| B | = | 7mm |
