SKU: AXK150190-MB

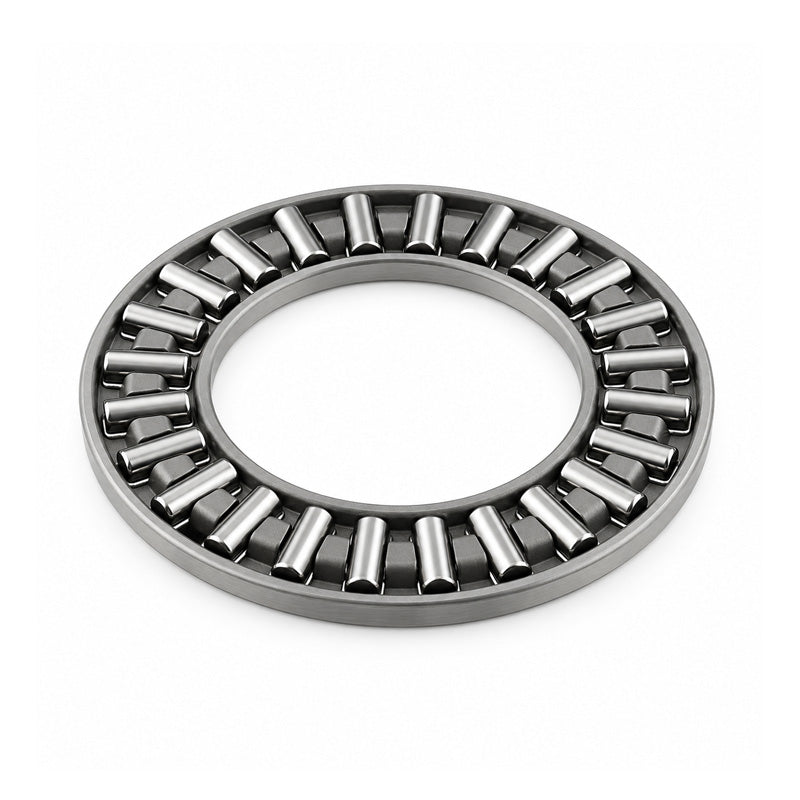

AXK150190 Major Branded Needle Roller Cage 150x190x5mm
- Regular price
- €171.95 ex VAT
- Sale price
- €171,95
- Regular price
-
In stock
Quantity Price Breaks
10
€153.04
19
€144.44
29
€142.72
39
€141.00
49
€139.28
74
€137.56
99
€128.96
199
€127.24
249
€125.52
499
€123.80
999
€120.37
SKU:
AXK150190-MB
AXK150190 Major Branded Needle Roller Cage 150x190x5mm
- Regular price
- €171.95 ex VAT
- Sale price
- €171,95
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 150mm |
| D | = | 190mm |
| Dw | = | 5mm |
| Ea | = | 156mm |
| Eb | = | 187mm |
| Dynamic load | = | 120000 N |
| Static load | = | 950000 N |
| Fatigue load limit Pu | = | 102000 N |
| Speed in grease | = | 630 rpm |
| Speed in oil | = | 850 rpm |
| Weight (assembly) | = | 230 g |
| d1 | = | 188mm |
| D | = | 190mm |
| D1 | = | 152mm |
| B | = | 9.5mm |
