SKU: AXK1528-MB-AS1528-MB

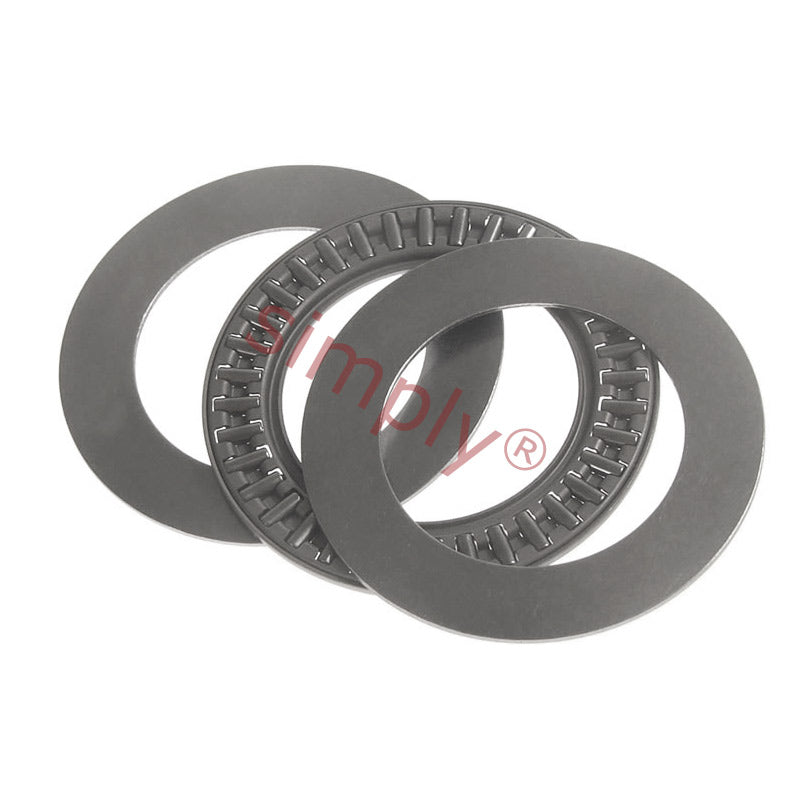

AXK1528 Major Branded Needle Roller Cage with 2 AS1528 Washers 15x28x4mm
- Regular price
- €5.20 ex VAT
- Sale price
- €5,20
- Regular price
-
In stock
Quantity Price Breaks
10+
€4.63
19+
€4.37
29+
€4.32
39+
€4.26
49+
€4.21
74+
€4.16
99+
€3.90
199+
€3.85
249+
€3.80
499+
€3.74
999+
€3.64
SKU:
AXK1528-MB-AS1528-MB
AXK1528 Major Branded Needle Roller Cage with 2 AS1528 Washers 15x28x4mm
- Regular price
- €5.20 ex VAT
- Sale price
- €5,20
- Regular price
-
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 15mm |
| D | = | 28mm |
| Dw | = | 4mm total (2 washers at 1mm each) |
| Ea | = | 17mm |
| Eb | = | 27mm |
| Dynamic load | = | 10400 N |
| Static load | = | 37500 N |
| Fatigue load limit Pu | = | 4150 N |
| Speed in grease | = | 3200 rpm |
| Speed in oil | = | 4300 rpm |
| Weight (assembly) | = | 4 g |
| d1 | = | 28mm |
| D | = | 28mm |
| D1 | = | 16mm |
| B | = | 2.75mm |
