SKU: AXK1629

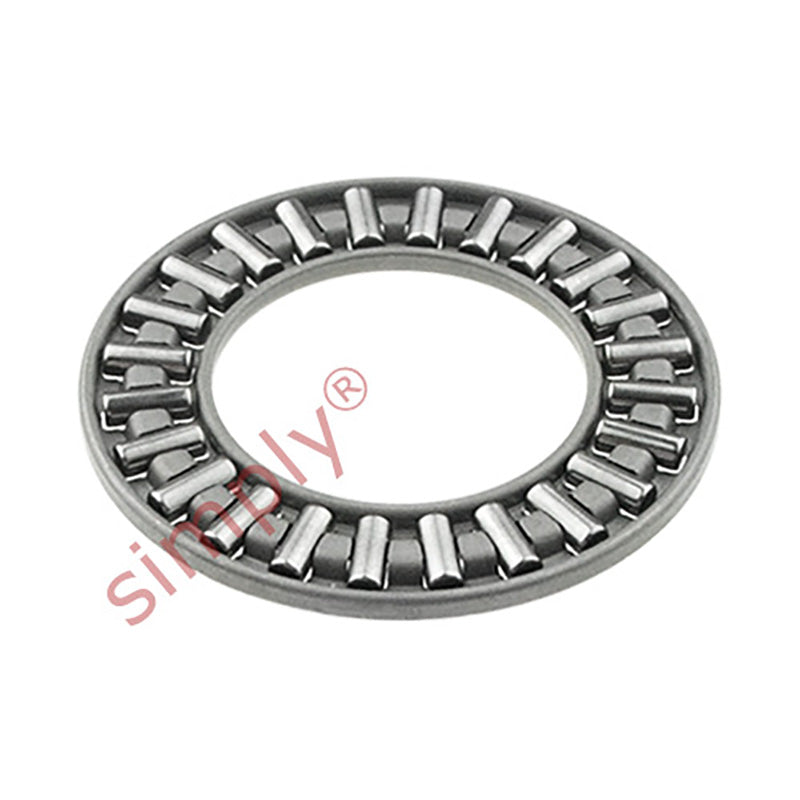

AXK1629 Major Branded Needle Roller Cage 16x29x2mm
- Regular price
- €3.26 ex VAT
- Sale price
- €3,26
- Regular price
-
Not in stock
Quantity Price Breaks
10
€2.90
19
€2.74
29
€2.71
39
€2.67
49
€2.64
74
€2.61
99
€2.45
199
€2.41
249
€2.38
499
€2.35
999
€2.28
SKU:
AXK1629
AXK1629 Major Branded Needle Roller Cage 16x29x2mm
- Regular price
- €3.26 ex VAT
- Sale price
- €3,26
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 16mm |
| D | = | 29mm |
| Dw | = | 2mm |
| Dynamic load | = | 9070 N |
| Static load | = | 31400N |
| Raceway Washer | = | LS1629 |
| Thrust Washer | = | AS1629 |
