SKU: AXK1629-MB-AS1629-MB

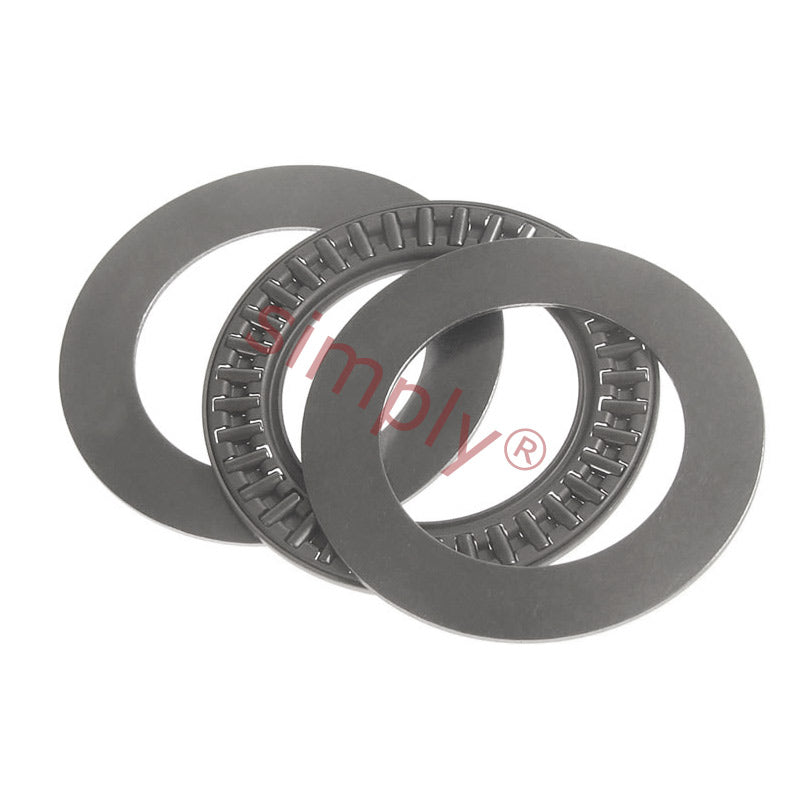

AXK1629 Major Branded Needle Roller Cage with 2 AS1629 Washers 16x29x4mm
- Regular price
- €5.20 ex VAT
- Sale price
- €5,20
- Regular price
-
In stock
Quantity Price Breaks
10+
€4.63
19+
€4.37
29+
€4.32
39+
€4.26
49+
€4.21
74+
€4.16
99+
€3.90
199+
€3.85
249+
€3.80
499+
€3.74
999+
€3.64
SKU:
AXK1629-MB-AS1629-MB
AXK1629 Major Branded Needle Roller Cage with 2 AS1629 Washers 16x29x4mm
- Regular price
- €5.20 ex VAT
- Sale price
- €5,20
- Regular price
-
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 16mm |
| D | = | 29mm |
| Dw | = | 4mm total (2 washers at 1mm each) |
| Dynamic load | = | 9070 N |
| Static load | = | 31400N |
| Raceway Washer | = | LS1629 |
| Thrust Washer | = | AS1629 |
