SKU: AXK1831

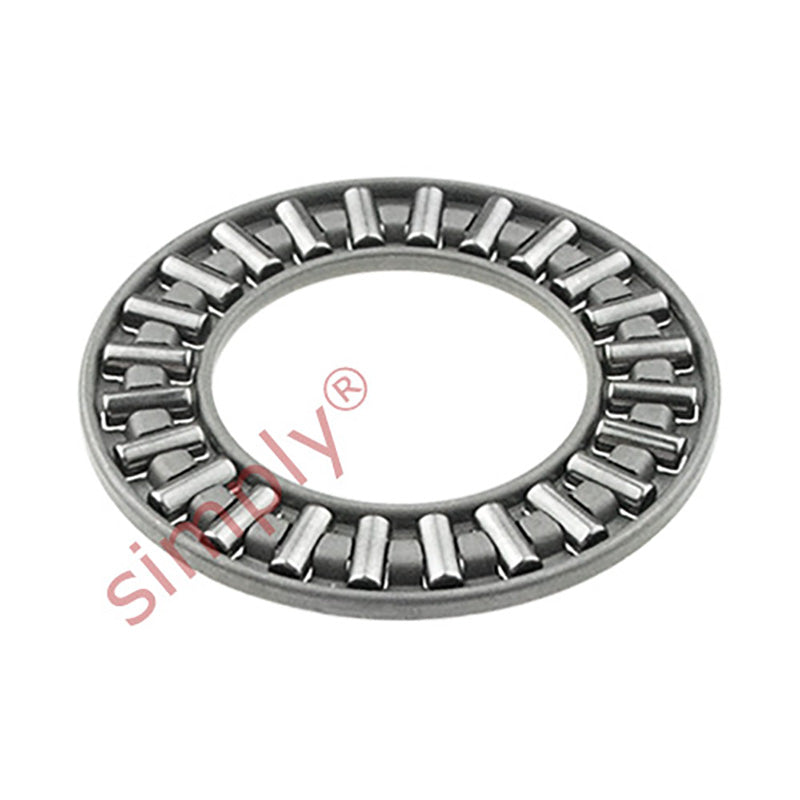

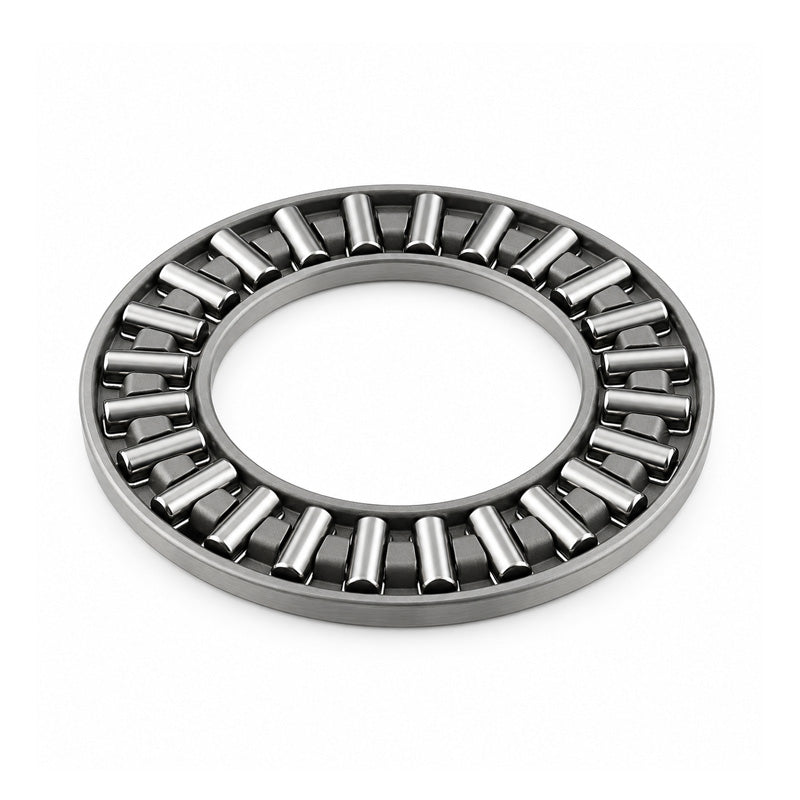

AXK1831 Major Branded Needle Roller Cage 18x31x2mm
- Regular price
- €4.82 ex VAT
- Sale price
- €4,82
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€4.29
19
€4.05
29
€4.00
39
€3.95
49
€3.90
74
€3.86
99
€3.62
199
€3.57
249
€3.52
499
€3.47
999
€3.37
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 18mm |
| D | = | 31mm |
| Dw | = | 2mm |
| Dynamic load | = | 9550 N |
| Static load | = | 34400N |
| Raceway Washer | = | LS1831 |
| Thrust Washer | = | AS1831 |
