SKU: AXK5578-MB

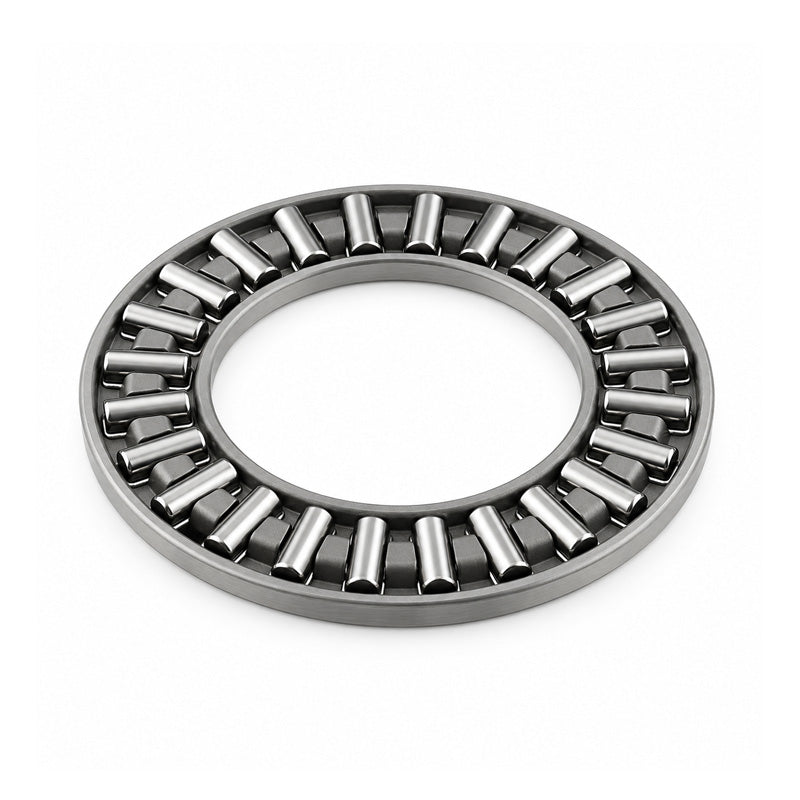

AXK5578 Major Branded Needle Roller Cage 55x78x3mm
- Regular price
- €7.67 ex VAT
- Sale price
- €7,67
- Regular price
-
In stock
Quantity Price Breaks
10
€6.83
19
€6.44
29
€6.37
39
€6.29
49
€6.21
74
€6.14
99
€5.75
199
€5.68
249
€5.60
499
€5.52
999
€5.37
SKU:
AXK5578-MB
AXK5578 Major Branded Needle Roller Cage 55x78x3mm
- Regular price
- €7.67 ex VAT
- Sale price
- €7,67
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 55mm |
| D | = | 78mm |
| Dw | = | 3mm |
| Ea | = | 60mm |
| Eb | = | 76mm |
| Dynamic load | = | 34500 N |
| Static load | = | 186000 N |
| Fatigue load limit Pu | = | 22400 N |
| Speed in grease | = | 1400 rpm |
| Speed in oil | = | 1900 rpm |
| Weight (assembly) | = | 28 g |
| d1 | = | 78mm |
| D | = | 78mm |
| D1 | = | 57mm |
| B | = | 5mm |
