SKU: AXK5578-MB-AS5578-MB

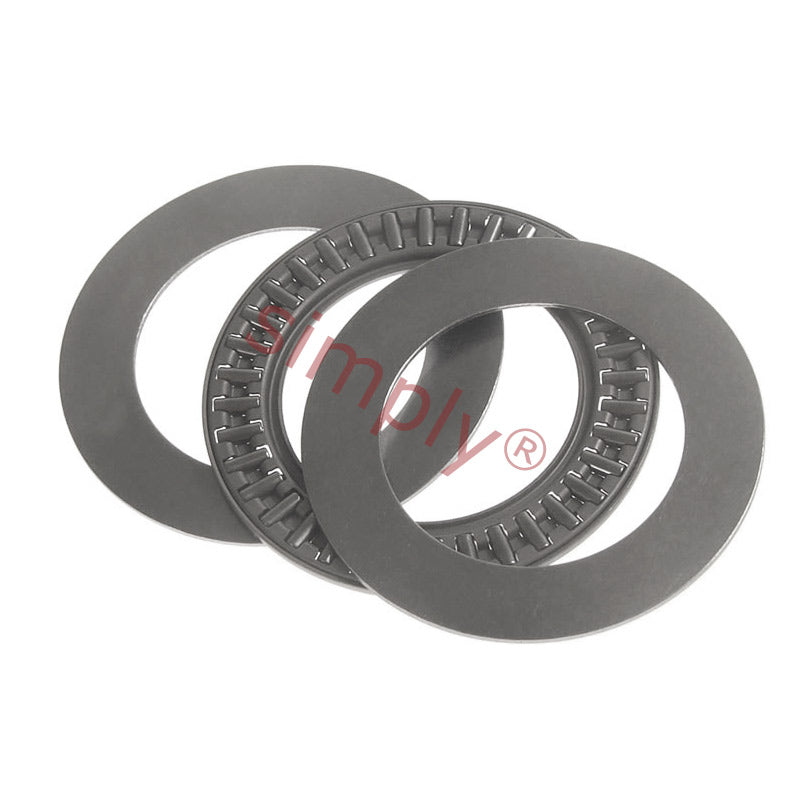

AXK5578 Major Branded Needle Roller Cage with 2 AS5578 Washers 55x78x5mm
- Regular price
- €14.83 ex VAT
- Sale price
- €14,83
- Regular price
-
In stock
Quantity Price Breaks
10+
€13.20
19+
€12.46
29+
€12.31
39+
€12.16
49+
€12.01
74+
€11.86
99+
€11.12
199+
€10.97
249+
€10.83
499+
€10.68
999+
€10.38
SKU:
AXK5578-MB-AS5578-MB
AXK5578 Major Branded Needle Roller Cage with 2 AS5578 Washers 55x78x5mm
- Regular price
- €14.83 ex VAT
- Sale price
- €14,83
- Regular price
-
Description
|
AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 55mm |
| D | = | 78mm |
| Dw | = | 5mm total (2 washers at 1mm each) |
| Ea | = | 60mm |
| Eb | = | 76mm |
| Dynamic load | = | 34500 N |
| Static load | = | 186000 N |
| Fatigue load limit Pu | = | 22400 N |
| Speed in grease | = | 1400 rpm |
| Speed in oil | = | 1900 rpm |
| Weight (assembly) | = | 28 g |
| d1 | = | 78mm |
| D | = | 78mm |
| D1 | = | 57mm |
| B | = | 5mm |
