SKU: AXK6085-MB
AXK6085 Major Branded Needle Roller Cage 60x85x3mm
- Regular price
- €13.02 ex VAT
- Sale price
- €13,02
- Regular price
-
In stock
Quantity Price Breaks
10
€11.59
19
€10.94
29
€10.81
39
€10.68
49
€10.55
74
€10.42
99
€9.77
199
€9.63
249
€9.50
499
€9.37
999
€9.11
SKU:
AXK6085-MB
AXK6085 Major Branded Needle Roller Cage 60x85x3mm
- Regular price
- €13.02 ex VAT
- Sale price
- €13,02
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical

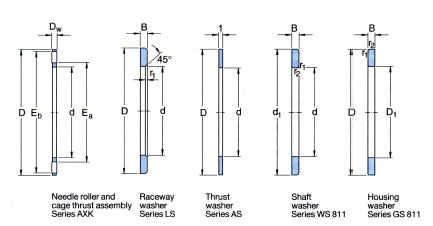

| d | = | 60mm |
| D | = | 85mm |
| Dw | = | 3mm |
| Ea | = | 65mm |
| Eb | = | 83mm |
| Dynamic load | = | 37500 N |
| Static load | = | 232000 N |
| Fatigue load limit Pu | = | 28500 N |
| Speed in grease | = | 1300 rpm |
| Speed in oil | = | 1800 rpm |
| Weight (assembly) | = | 33 g |
| d1 | = | 85mm |
| D | = | 85mm |
| D1 | = | 62mm |
| B | = | 4.75mm |
