SKU: AXK75100-MB

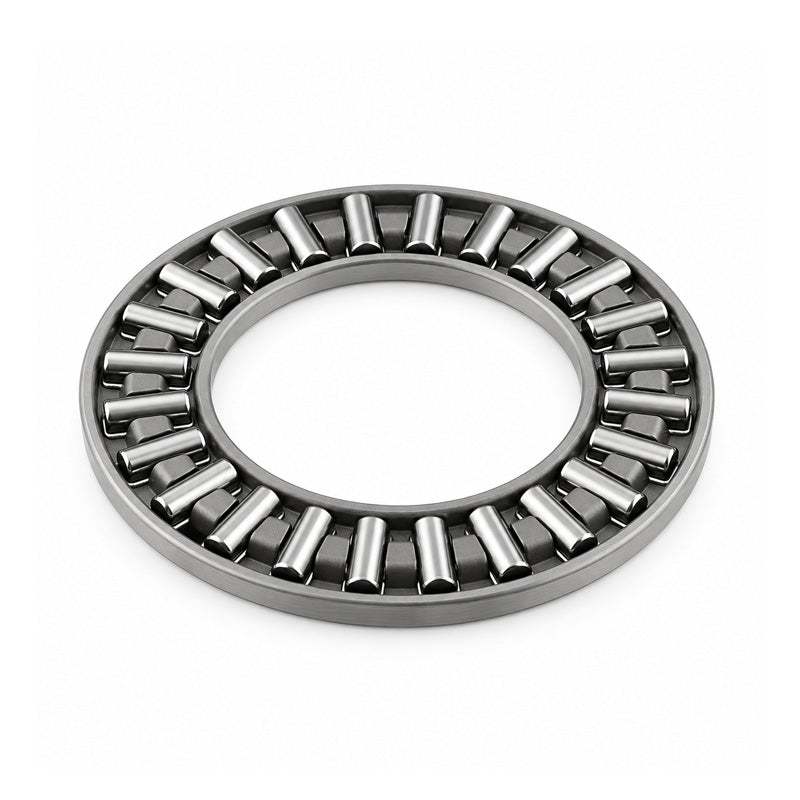

AXK75100 Major Branded Needle Roller Cage 75x100x4mm
- Regular price
- €28.70 ex VAT
- Sale price
- €28,70
- Regular price
-
In stock
Quantity Price Breaks
10
€25.54
19
€24.11
29
€23.82
39
€23.53
49
€23.25
74
€22.96
99
€21.53
199
€21.24
249
€20.95
499
€20.66
999
€20.09
SKU:
AXK75100-MB
AXK75100 Major Branded Needle Roller Cage 75x100x4mm
- Regular price
- €28.70 ex VAT
- Sale price
- €28,70
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 75mm |
| D | = | 100mm |
| Dw | = | 4mm |
| Ea | = | 79mm |
| Eb | = | 98mm |
| Dynamic load | = | 50000 N |
| Static load | = | 265000 N |
| Fatigue load limit Pu | = | 32000 N |
| Speed in grease | = | 1100 rpm |
| Speed in oil | = | 1600 rpm |
| Weight (assembly) | = | 61 g |
| d1 | = | 100mm |
| D | = | 100mm |
| D1 | = | 77mm |
| B | = | 5.75mm |
