SKU: AXK90120-MB

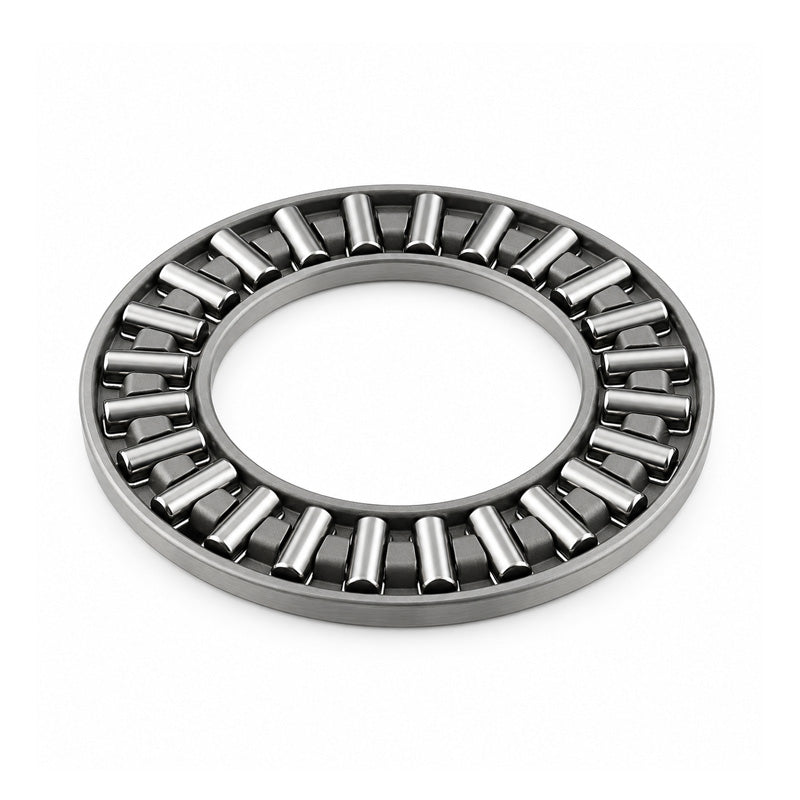

AXK90120 Major Branded Needle Roller Cage 90x120x4mm
- Regular price
- €31.96 ex VAT
- Sale price
- €31,96
- Regular price
-
In stock
Quantity Price Breaks
10
€28.44
19
€26.85
29
€26.53
39
€26.21
49
€25.89
74
€25.57
99
€23.97
199
€23.65
249
€23.33
499
€23.01
999
€22.37
SKU:
AXK90120-MB
AXK90120 Major Branded Needle Roller Cage 90x120x4mm
- Regular price
- €31.96 ex VAT
- Sale price
- €31,96
- Regular price
-
Description
|
AXK Series Needle Roller thrust Bearings: Needle roller and cage thrust assemblies are a low profile high load thrust bearing assembly and can be used with either the AS, LS or GS series thrust washers which are supplied separately, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence. Benefits: Cost effective thrust solution, wide range, low profile, high load bearing |
Technical
| d | = | 90mm |
| D | = | 120mm |
| Dw | = | 4mm |
| Ea | = | 94mm |
| Eb | = | 118mm |
| Dynamic load | = | 65500 N |
| Static load | = | 405000 N |
| Fatigue load limit Pu | = | 48000 N |
| Speed in grease | = | 900 rpm |
| Speed in oil | = | 1300 rpm |
| Weight (assembly) | = | 86 g |
| d1 | = | 120mm |
| D | = | 120mm |
| D1 | = | 92mm |
| B | = | 6.5mm |
