SKU: AXW10-EU
Quality Budget AXW10 Thrust Race with Centering Spigot 10x27x3.2mm
- Regular price
- €3.47 ex VAT
- Sale price
- €3,47
- Regular price
-
In stock
Quantity Price Breaks
10
€3.09
19
€2.91
29
€2.88
39
€2.85
49
€2.81
74
€2.78
99
€2.60
199
€2.57
249
€2.53
499
€2.50
999
€2.43
SKU:
AXW10-EU
Quality Budget AXW10 Thrust Race with Centering Spigot 10x27x3.2mm
- Regular price
- €3.47 ex VAT
- Sale price
- €3,47
- Regular price
-
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |

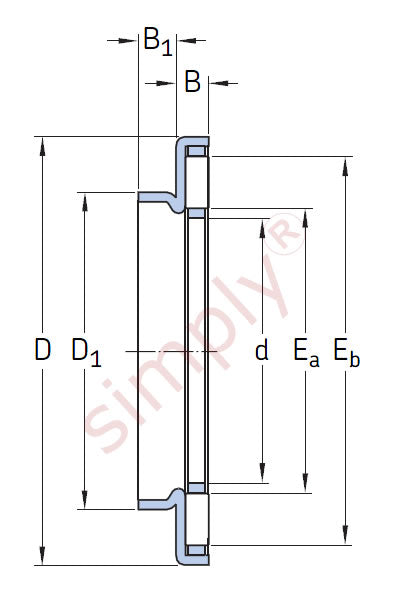

Technical
| Inside diameter | = | 10mm |
| Outside diameter | = | 27mm |
| B | = | 3.2mm |
| B1 | = | 3mm |
| D1 | = | 14mm |
| Ea | = | 12mm |
| Eb | = | 23mm |
| Weight | = | 8.3 g |
| Dynamic load | = | 9200 N |
| Static load | = | 25500 N |
| Fatigue load limit | = | 2500 N |
| Limiting speed | = | 16900 rpm |
| Reference speed | = | 8300 rpm |
| Bearing washer to use | = | < |
| a href=" | = | advanced_search_result.php?search_in_description=0& |
| keywords=AS1024" | = | > |
| Click Here AS1024 | = | N/A |
