SKU: AXW15-MB
INA / SKF AXW15 Thrust Race with Centering Spigot 15x31x3.2mm
- Regular price
- €5.66 ex VAT
- Sale price
- €5,66
- Regular price
-
In stock
Quantity Price Breaks
10
€5.04
19
€4.75
29
€4.70
39
€4.64
49
€4.58
74
€4.53
99
€4.25
199
€4.19
249
€4.13
499
€4.08
999
€3.96
SKU:
AXW15-MB
INA / SKF AXW15 Thrust Race with Centering Spigot 15x31x3.2mm
- Regular price
- €5.66 ex VAT
- Sale price
- €5,66
- Regular price
-
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |

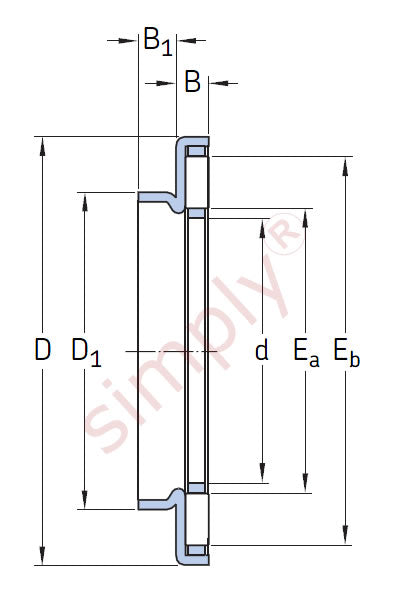

Technical
| Inside diameter | = | 15mm |
| Outside diameter | = | 31mm |
| B | = | 3.2mm |
| B1 | = | 3.5mm |
| D1 | = | 21mm |
| Ea | = | 17mm |
| Eb | = | 27mm |
| Weight | = | 10 g |
| Dynamic load | = | 11300 N |
| Static load | = | 36000 N |
| Fatigue load limit | = | 3600 N |
| Limiting speed | = | 13200 rpm |
| Reference speed | = | 5800 rpm |
| Bearing washer to use | = | < |
| a href=" | = | advanced_search_result.php?search_in_description=0& |
| keywords=AS1528" | = | > |
| Click Here AS1528 | = | N/A |
