SKU: AXW25-MB

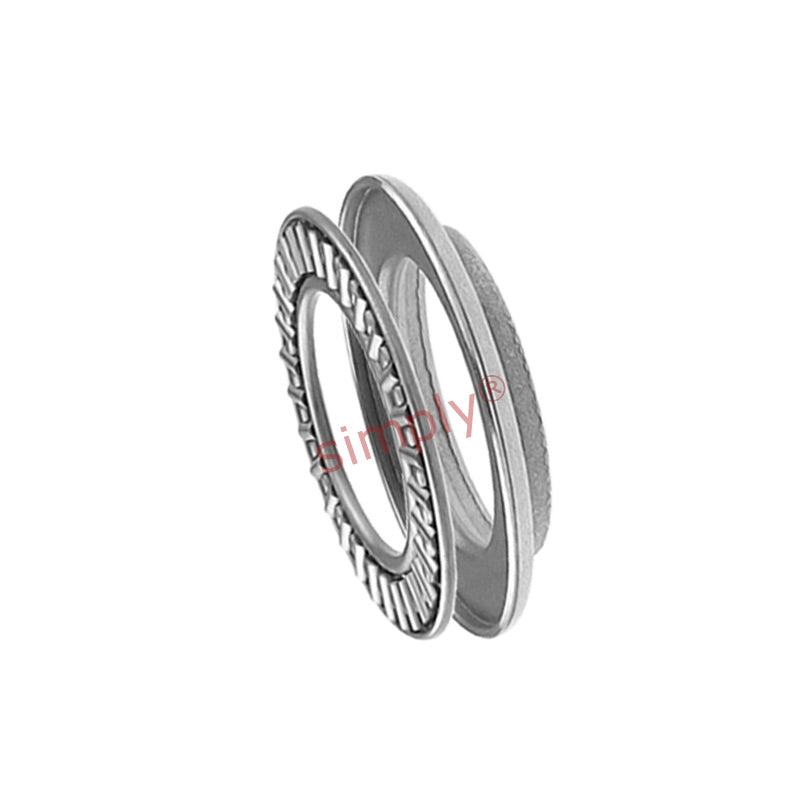

INA / SKF AXW25 Thrust Race with Centering Spigot 25x45x3.2mm
- Regular price
- €7.69 ex VAT
- Sale price
- €7,69
- Regular price
-
In stock
Quantity Price Breaks
10
€6.84
19
€6.46
29
€6.38
39
€6.31
49
€6.23
74
€6.15
99
€5.77
199
€5.69
249
€5.61
499
€5.54
999
€5.38
SKU:
AXW25-MB
INA / SKF AXW25 Thrust Race with Centering Spigot 25x45x3.2mm
- Regular price
- €7.69 ex VAT
- Sale price
- €7,69
- Regular price
-
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
Technical
| Inside diameter | = | 25mm |
| Outside diameter | = | 45mm |
| B | = | 3.2mm |
| B1 | = | 4mm |
| D1 | = | 32mm |
| Ea | = | 29mm |
| Eb | = | 41mm |
| Weight | = | 20 g |
| Dynamic load | = | 14700 N |
| Static load | = | 58000 N |
| Fatigue load limit | = | 5900 N |
| Limiting speed | = | 8400 rpm |
| Reference speed | = | 4250 rpm |
| Bearing washer to use | = | < |
| a href=" | = | advanced_search_result.php?search_in_description=0& |
| keywords=AS2542" | = | > |
| Click Here AS2542 | = | N/A |
