SKU: AXW35-EU

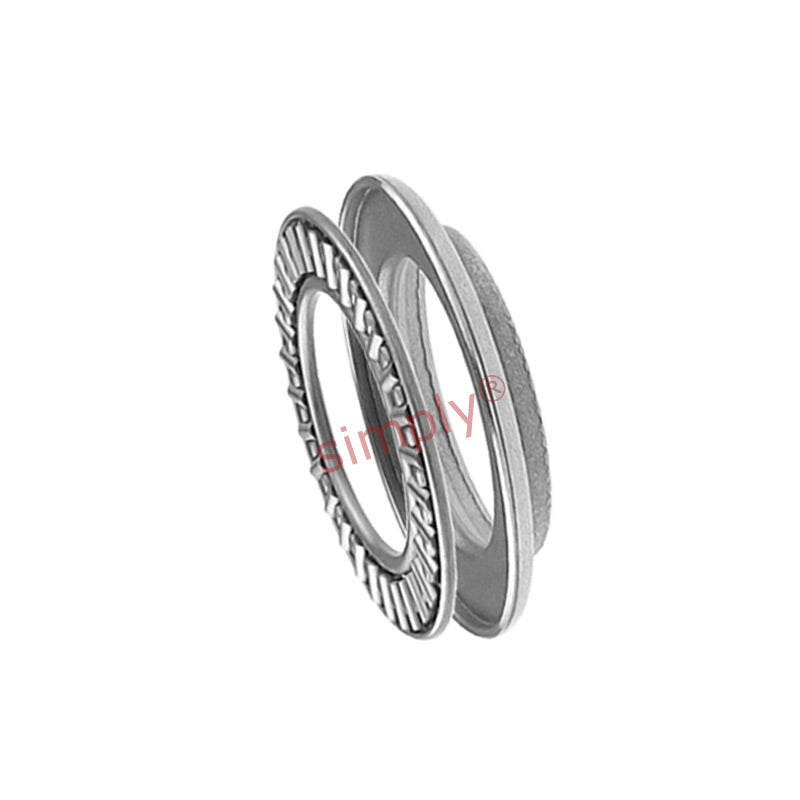

Quality Budget AXW35 Thrust Race with Centering Spigot 35x55x3.2mm
- Regular price
- €9.62 ex VAT
- Sale price
- €9,62
- Regular price
-
In stock
Quantity Price Breaks
10
€8.56
19
€8.08
29
€7.98
39
€7.89
49
€7.79
74
€7.70
99
€7.22
199
€7.12
249
€7.02
499
€6.93
999
€6.73
SKU:
AXW35-EU
Quality Budget AXW35 Thrust Race with Centering Spigot 35x55x3.2mm
- Regular price
- €9.62 ex VAT
- Sale price
- €9,62
- Regular price
-
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
Technical
| Inside diameter | = | 35mm |
| Outside diameter | = | 55mm |
| B | = | 3.2mm |
| B1 | = | 4mm |
| D1 | = | 42mm |
| Ea | = | 39mm |
| Eb | = | 51mm |
| Weight | = | 27 g |
| Dynamic load | = | 17800 N |
| Static load | = | 81000 N |
| Fatigue load limit | = | 8300 N |
| Limiting speed | = | 6500 rpm |
| Reference speed | = | 3100 rpm |
| Bearing washer to use | = | < |
| a href=" | = | advanced_search_result.php?search_in_description=0& |
| keywords=AS3552" | = | > |
| Click Here AS3552 | = | N/A |
