SKU: AXW40-MB

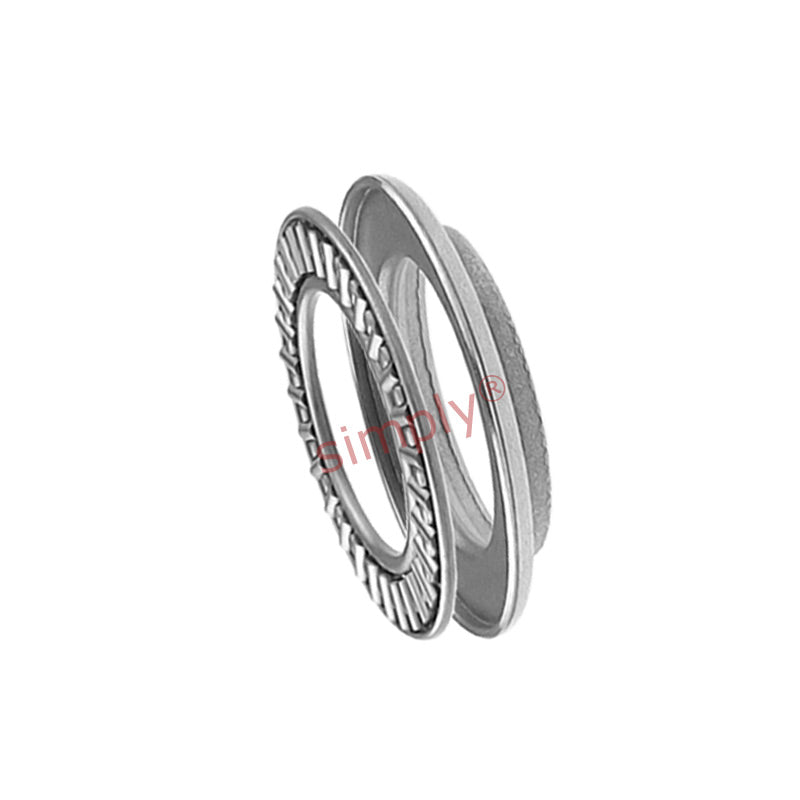

INA / SKF AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
- Regular price
- €14.59 ex VAT
- Sale price
- €14,59
- Regular price
-
In stock
Quantity Price Breaks
10
€12.99
19
€12.26
29
€12.11
39
€11.96
49
€11.82
74
€11.67
99
€10.94
199
€10.80
249
€10.65
499
€10.50
999
€10.21
SKU:
AXW40-MB
INA / SKF AXW40 Thrust Race with Centering Spigot 40x63x4.2mm
- Regular price
- €14.59 ex VAT
- Sale price
- €14,59
- Regular price
-
Description
|
AXW Series Spigot Alignment Needle Thrust Bearings: Similar to the AXK needle thrust bearing this series has a centre spigot to enable it to be aligned in a bore of a housing, they can be combined with radial needle roller bearings to accommodate radial and axial loads simultaneously and are generally used in conjunction with the AS, LS and GS series washers. |
Technical
| Inside diameter | = | 40mm |
| Outside diameter | = | 63mm |
| B | = | 4.2mm |
| B1 | = | 4mm |
| D1 | = | 47mm |
| Ea | = | 45mm |
| Eb | = | 58mm |
| Weight | = | 39 g |
| Dynamic load | = | 28000 N |
| Static load | = | 114000 N |
| Fatigue load limit | = | 11800 N |
| Limiting speed | = | 5600 rpm |
| Reference speed | = | 2700 rpm |
| Bearing washer to use | = | < |
| a href=" | = | advanced_search_result.php?search_in_description=0& |
| keywords=AS4060" | = | > |
| Click Here AS4060 | = | N/A |
