SKU: BA7-MB
Branded BA7 Single Thrust Ball Bearing 7x17x6mm
- Regular price
- €24.69 ex VAT
- Sale price
- €24,69
- Regular price
-
In stock
Quantity Price Breaks
10
€21.97
19
€20.74
29
€20.49
39
€20.25
49
€20.00
74
€19.75
99
€18.52
199
€18.27
249
€18.02
499
€17.78
999
€17.28
SKU:
BA7-MB
Branded BA7 Single Thrust Ball Bearing 7x17x6mm
- Regular price
- €24.69 ex VAT
- Sale price
- €24,69
- Regular price
-
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |

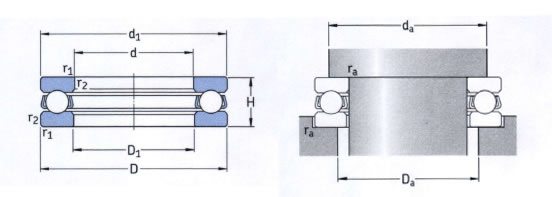

Technical
| d | = | 7mm |
| D | = | 17mm |
| H | = | 6mm |
| Dynamic load C | = | 2.51 kN |
| Static load Co | = | 2.9 kN |
| Fatigue load limit Pu | = | 0.108 kN |
| Minimum load factor A | = | 0.000044 |
| Reference speed | = | 14000 rpm |
| Limiting speed | = | 19000 rpm |
| Weight | = | 0.0065 kg |
| d1 | = | 16.8mm |
| D1 | = | 7.2mm |
| r1r2 min | = | 0.2mm |
| da min | = | 12.5mm |
| Da max | = | 11mm |
| ra max | = | 0.2mm |
