SKU: BB-6005-B180-10-ES

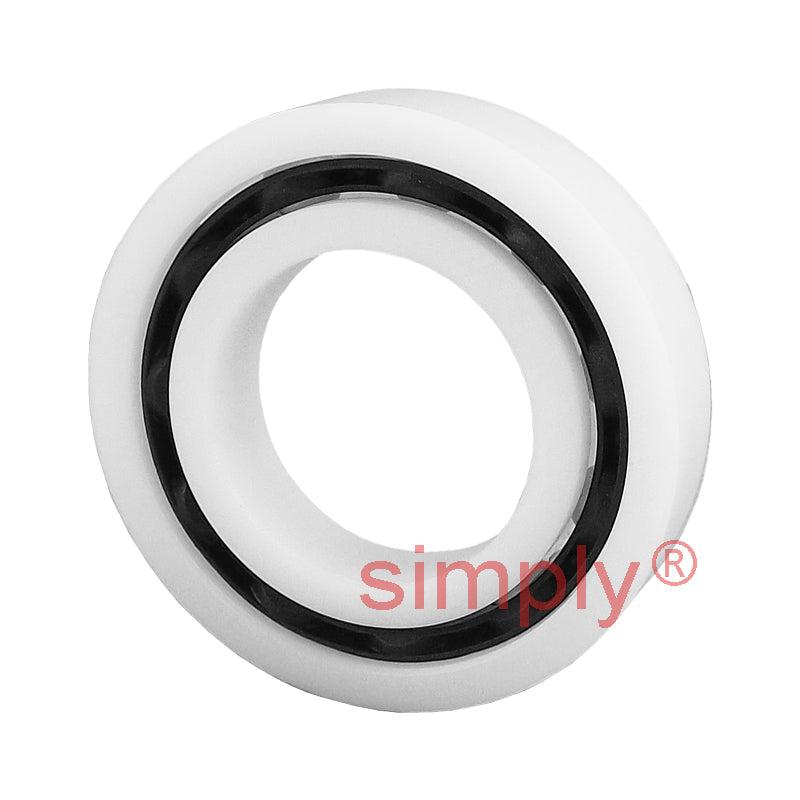

xiros xirodur BB6005B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 25x47x12mm
- Regular price
- €20.45 ex VAT
- Sale price
- €20,45
- Regular price
-
In stock
Quantity Price Breaks
5
€18.20
9
€17.18
29
€16.97
49
€16.77
99
€16.56
199
€16.36
299
€15.34
399
€15.13
499
€14.93
749
€14.72
999
€14.32
SKU:
BB-6005-B180-10-ES
xiros xirodur BB6005B18010ES Open Type Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 25x47x12mm
- Regular price
- €20.45 ex VAT
- Sale price
- €20,45
- Regular price
-
Description
|
IGUS xiros® xirodur® B180 Polymer Ball Bearings: These open type radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
Technical

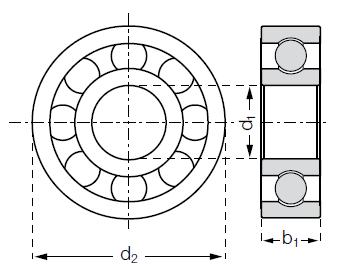

| d1 | = | 25mm |
| d2 | = | 47mm |
| b1 | = | 12mm |
| Max static load capacity | = | 520 N |
| Static load capacity | = | 240 N |
| Dynamic load capacity | = | 360 N |
| Max speed | = | 1050 rpm |
| Race | = | B180 |
| Cage | = | PA |
| Ball material | = | Stainless Steel |
