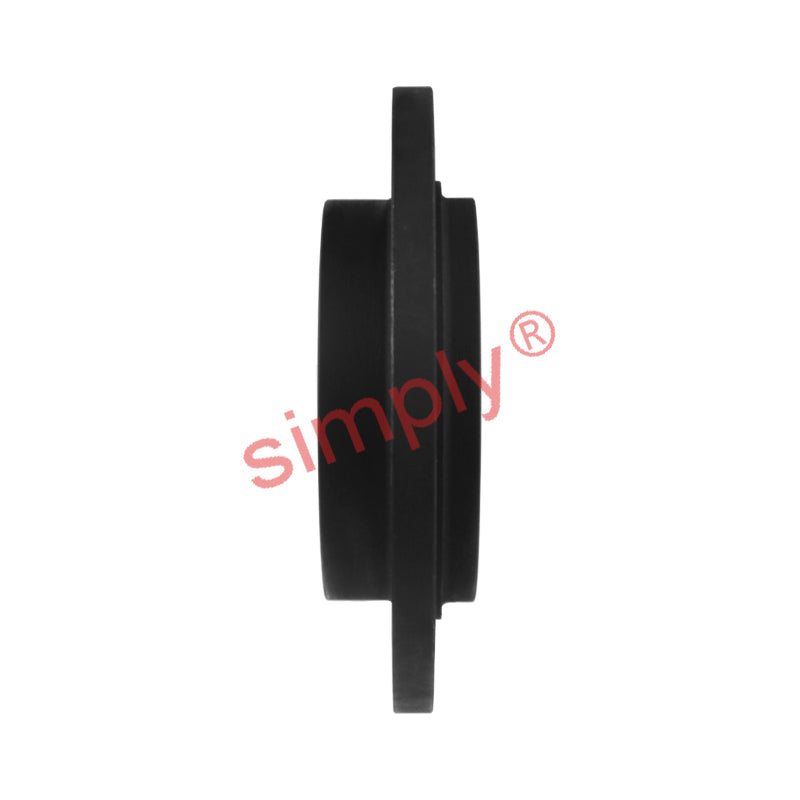

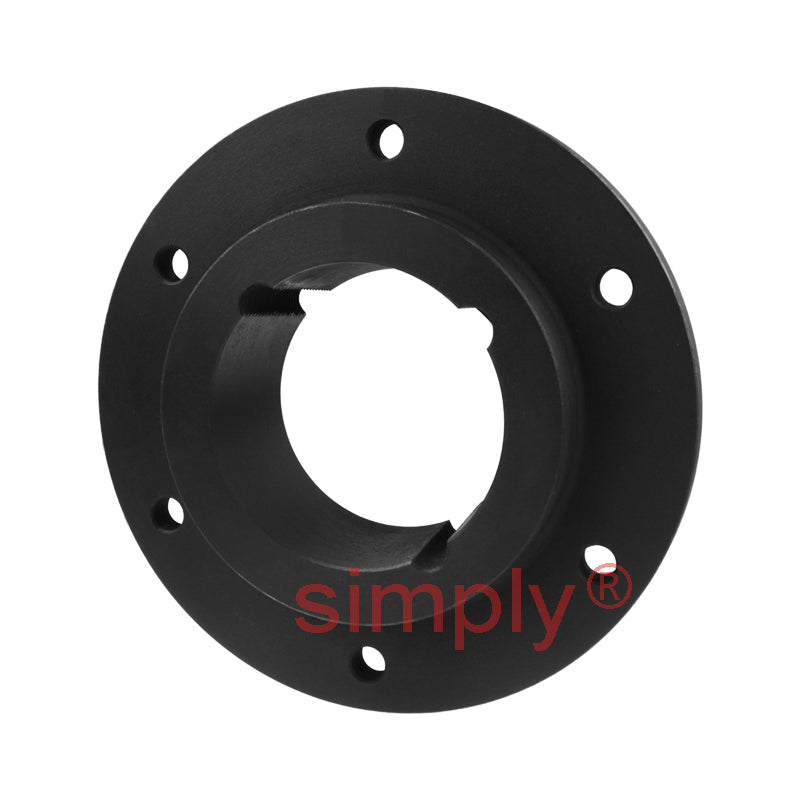

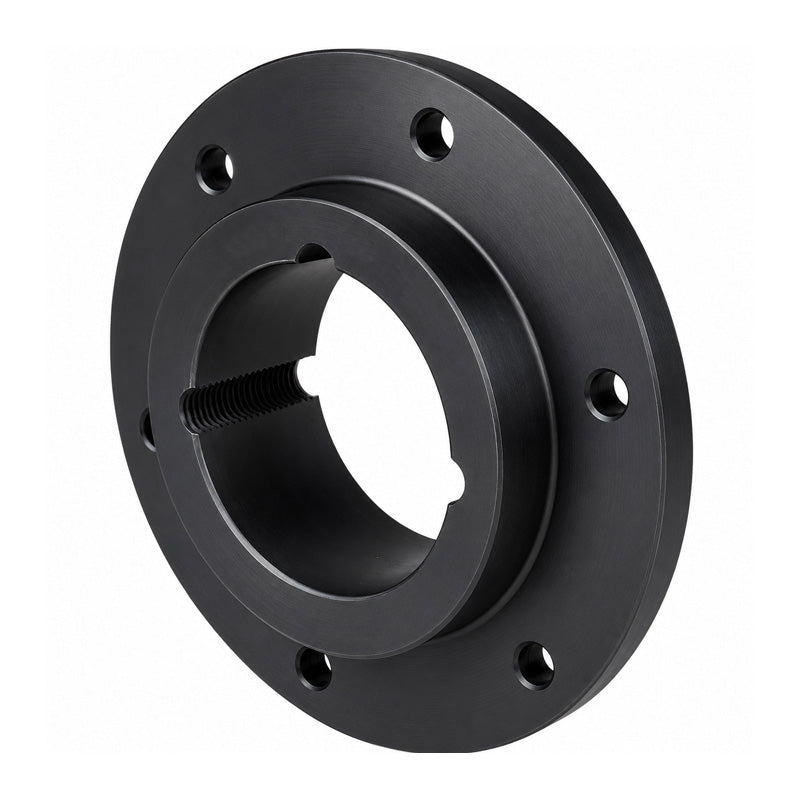

Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore

SKU: BF30-MB

Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore

€81.18 ex VAT
€81,18
ex VAT
Not in stock

Quantity Price Breaks

3 €72.25
5 €68.19
9 €67.38
19 €66.57
49 €65.76
74 €64.94
99 €60.89
199 €60.07
249 €59.26
499 €58.45
999 €56.83
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore
SKU: BF30-MB

Major Branded BF30 Cast Iron Bolt on Hub Shaft Fixing with Tapered Bore

€81.18 ex VAT
€81,18
ex VAT

Description

Cast Iron Bolt-on-Hub Shaft Fixings: These Bolt-on-Hubs feature a tapered bore and are designed for use with universally accepted tapered bushes. They provide a convenient means of securing fan rotors, impellers, agitators and other devices which must be fastened firmly to shafts. We supply both BF and SM style Bolt-on-Hubs which is the complete range. These hubs are manufactured from GG22 cast iron and are phosphated for extra rust protection.
Benefit: Excellent resistance to rust

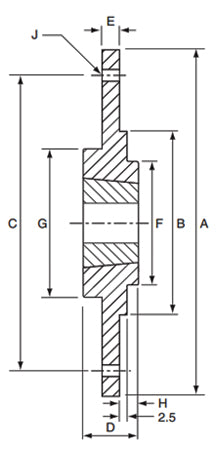

Technical

Hub Reference = BF30
Bush Number = 3020
A = 220mm
B = 165mm
C = 190mm
D = 50mm
E = 11.5mm
F = 146mm
G = 147mm
H = 20mm
J = 6 x 13.0mm
