SKU: BK0306TN-MB

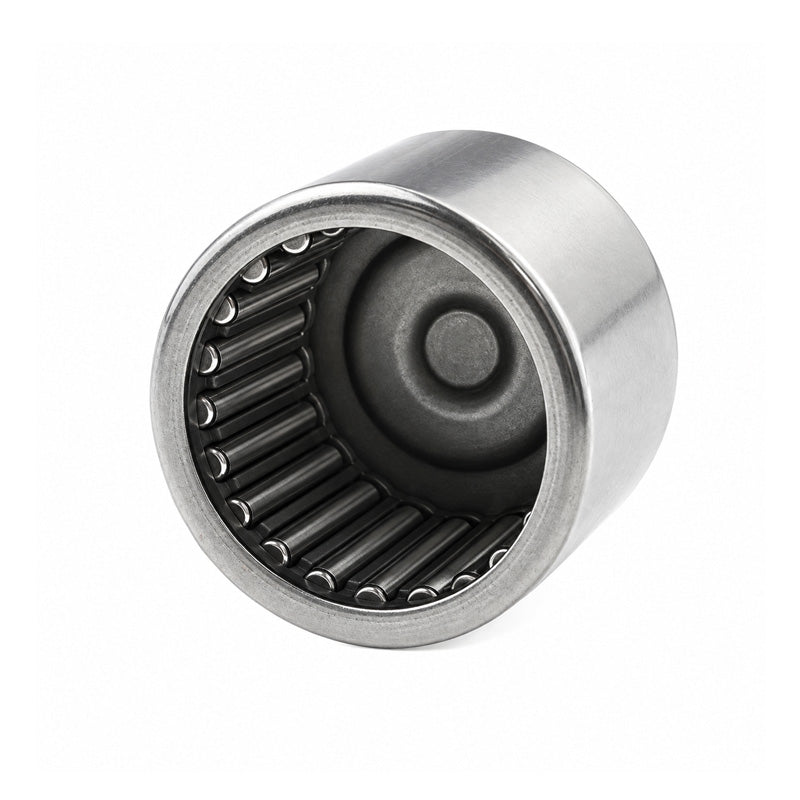

Major Brand BK0306TN Drawn Cup Type Needle Roller Bearing with One Closed End 3x6.5x6mm
- Regular price
- €6.03 ex VAT
- Sale price
- €6,03
- Regular price
-
In stock
Quantity Price Breaks
10
€5.37
19
€5.07
29
€5.00
39
€4.94
49
€4.88
74
€4.82
99
€4.52
199
€4.46
249
€4.40
499
€4.34
999
€4.22
SKU:
BK0306TN-MB
Major Brand BK0306TN Drawn Cup Type Needle Roller Bearing with One Closed End 3x6.5x6mm
- Regular price
- €6.03 ex VAT
- Sale price
- €6,03
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 3mm |
| D | = | 6.5mm |
| C | = | 6mm |
| Dynamic load | = | 1230 N |
| Static load | = | 880 N |
| Fatigue load limit Pu | = | 88 N |
| Speed in grease | = | 30000 rpm |
| Speed in oil | = | 43000 rpm |
| C1 | = | 5.2mm |
| r1r2 min | = | 0.3mm |
| Da max | = | 3.5mm |
| ra max | = | 0.3mm |
| Weight | = | 1 g |
