SKU: BK0408-MB

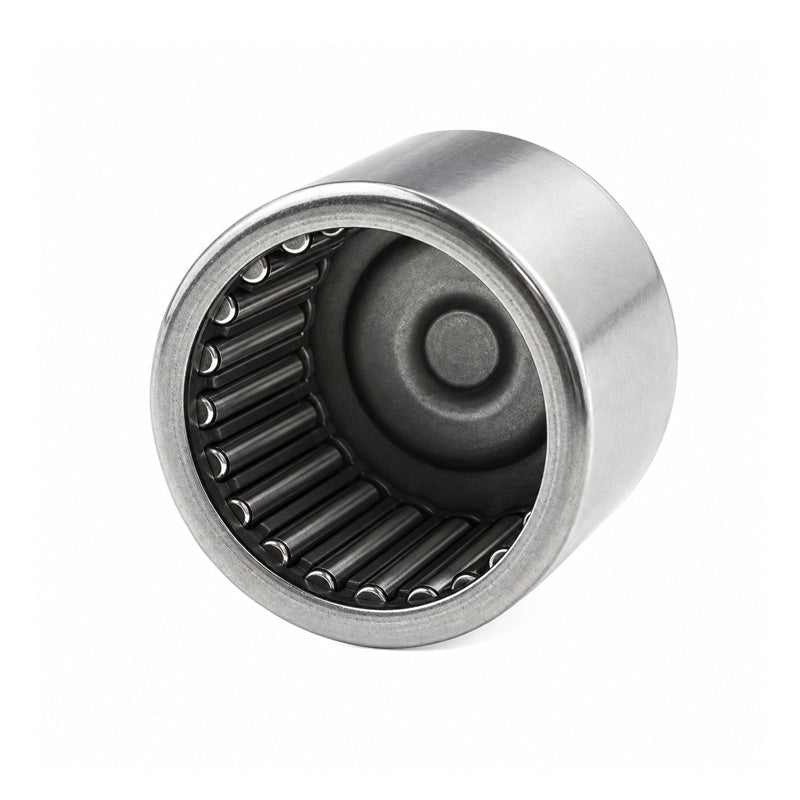

Major Brand BK0408 Drawn Cup Type Needle Roller Bearing with One Closed End 4x8x8mm
- Regular price
- €5.50 ex VAT
- Sale price
- €5,50
- Regular price
-
In stock
Quantity Price Breaks
10
€4.90
19
€4.62
29
€4.57
39
€4.51
49
€4.46
74
€4.40
99
€4.13
199
€4.07
249
€4.02
499
€3.96
999
€3.85
SKU:
BK0408-MB
Major Brand BK0408 Drawn Cup Type Needle Roller Bearing with One Closed End 4x8x8mm
- Regular price
- €5.50 ex VAT
- Sale price
- €5,50
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 4mm |
| D | = | 8mm |
| C | = | 8mm |
| Dynamic load | = | 1760 N |
| Static load | = | 1370 N |
| Fatigue load limit Pu | = | 140 N |
| Speed in grease | = | 26000 rpm |
| Speed in oil | = | 38000 rpm |
| C1 | = | 6.4mm |
| r1r2 min | = | 0.3mm |
| Da max | = | 5mm |
| ra max | = | 0.3mm |
| Seal | = | G4x8x2S |
| Weight | = | 2.1 g |
