SKU: BK1516-MB

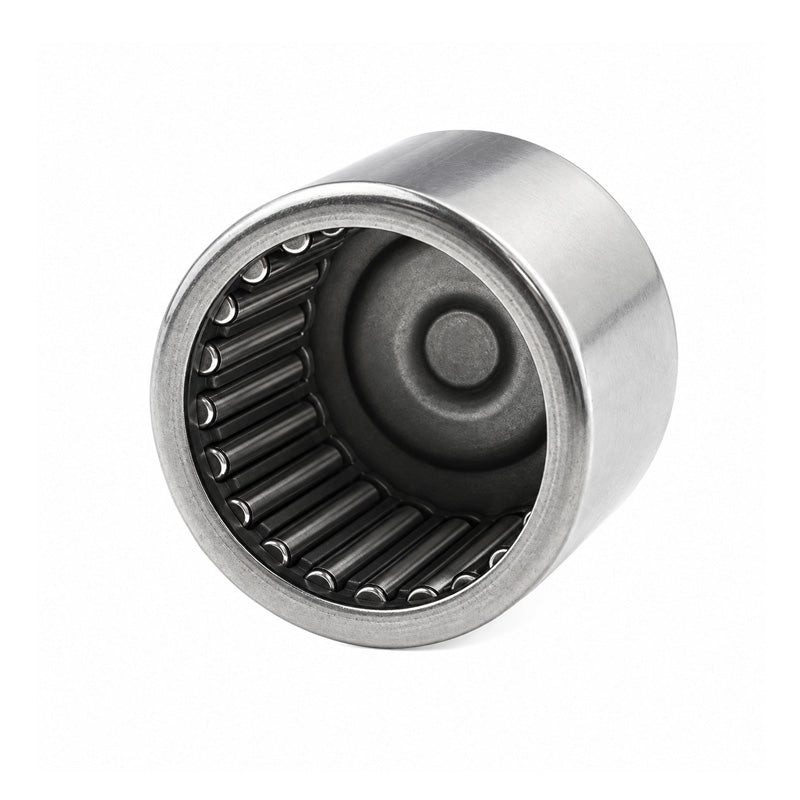

Major Brand BK1516 Drawn Cup Type Needle Roller Bearing with One Closed End 15x21x16mm
- Regular price
- €8.37 ex VAT
- Sale price
- €8,37
- Regular price
-
In stock
Quantity Price Breaks
10
€7.45
19
€7.03
29
€6.95
39
€6.86
49
€6.78
74
€6.70
99
€6.28
199
€6.19
249
€6.11
499
€6.03
999
€5.86
SKU:
BK1516-MB
Major Brand BK1516 Drawn Cup Type Needle Roller Bearing with One Closed End 15x21x16mm
- Regular price
- €8.37 ex VAT
- Sale price
- €8,37
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 15mm |
| D | = | 21mm |
| C | = | 16mm |
| Dynamic load | = | 10100 N |
| Static load | = | 14600 N |
| Fatigue load limit Pu | = | 1700 N |
| Speed in grease | = | 11000 rpm |
| Speed in oil | = | 17000 rpm |
| C1 | = | 13.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 16mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR12x15x16.5 |
| Seal | = | G/SD15x21x3 |
| Weight | = | 17 g |
