SKU: BK2018RS-MB

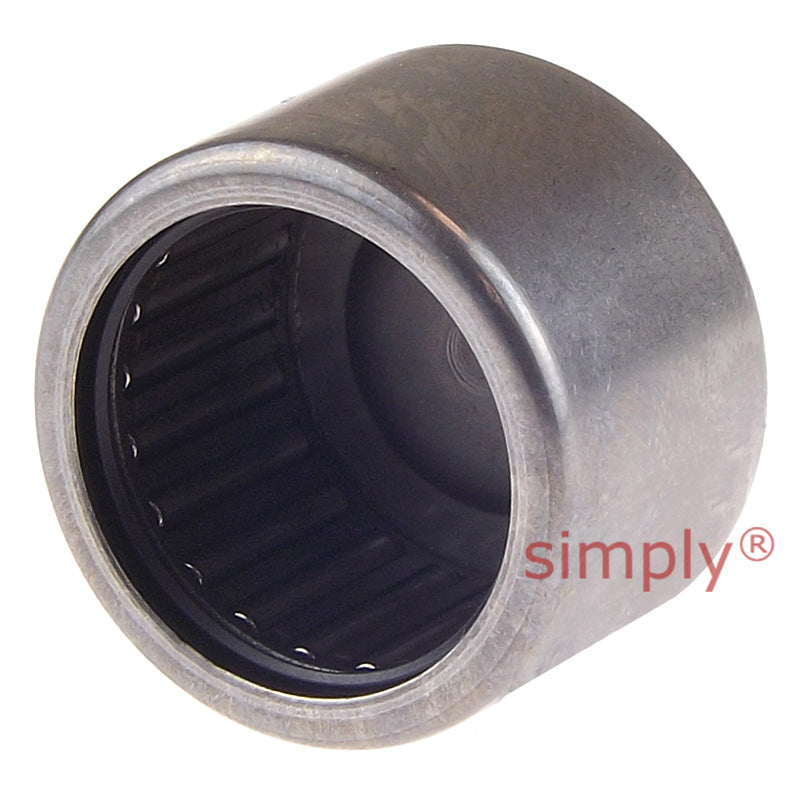

Major Brand BK2018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with One Closed End 20x26x18mm
- Regular price
- €10.93 ex VAT
- Sale price
- €10,93
- Regular price
-
In stock
Quantity Price Breaks
10
€9.73
19
€9.18
29
€9.07
39
€8.96
49
€8.85
74
€8.74
99
€8.20
199
€8.09
249
€7.98
499
€7.87
999
€7.65
SKU:
BK2018RS-MB
Major Brand BK2018RS Drawn Cup Type Needle Roller Rubber Sealed Bearing with One Closed End 20x26x18mm
- Regular price
- €10.93 ex VAT
- Sale price
- €10,93
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 20mm |
| D | = | 26mm |
| C | = | 18mm |
| Dynamic load | = | 12300 N |
| Static load | = | 20400 N |
| Fatigue load limit Pu | = | 2360 N |
| Speed in grease | = | 9000 rpm |
| C1 | = | 15.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 21mm |
| ra max | = | 0.8mm |
| Inner ring | = | LR17x20x16.5 |
| Weight | = | 24 g |
