SKU: BK3012-MB

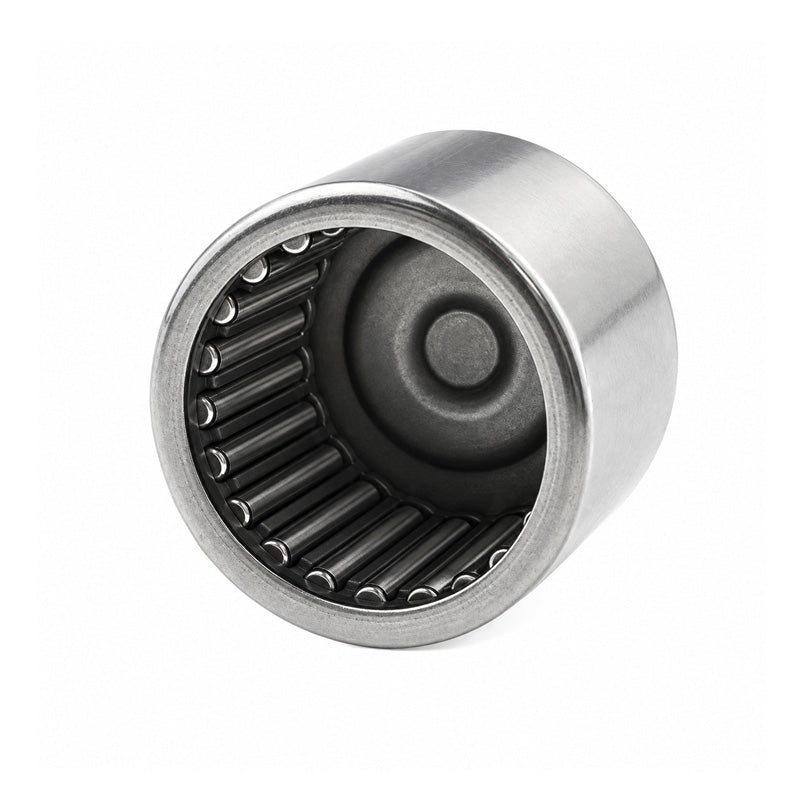

Major Brand BK3012 Drawn Cup Type Needle Roller Bearing with One Closed End 30x37x12mm
- Regular price
- €21.42 ex VAT
- Sale price
- €21,42
- Regular price
-
In stock
Quantity Price Breaks
10
€19.06
19
€17.99
29
€17.78
39
€17.56
49
€17.35
74
€17.14
99
€16.07
199
€15.85
249
€15.64
499
€15.42
999
€14.99
SKU:
BK3012-MB
Major Brand BK3012 Drawn Cup Type Needle Roller Bearing with One Closed End 30x37x12mm
- Regular price
- €21.42 ex VAT
- Sale price
- €21,42
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 30mm |
| D | = | 37mm |
| C | = | 12mm |
| Dynamic load | = | 11700 N |
| Static load | = | 18300 N |
| Fatigue load limit Pu | = | 2120 N |
| Speed in grease | = | 6300 rpm |
| Speed in oil | = | 9000 rpm |
| C1 | = | 9.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 32mm |
| ra max | = | 0.8mm |
| Seal | = | G/SD30x37x4 |
| Weight | = | 28 g |
