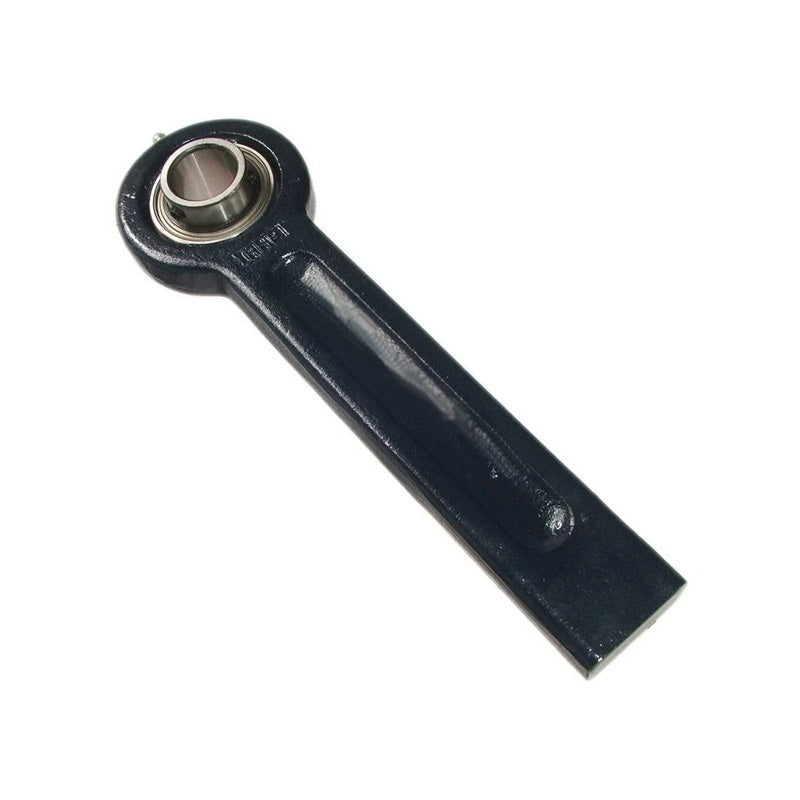

RHP BT1-3/8 Cast Iron Belt Tensioner and 1-3/8 inch Bore Insert

SKU: BT1.3/8-RHP

RHP BT1-3/8 Cast Iron Belt Tensioner and 1-3/8 inch Bore Insert

€129.73 ex VAT
€129,73
ex VAT
Not in stock

Quantity Price Breaks

10 €115.46
20 €108.97
30 €107.68
40 €106.38
50 €105.08
75 €103.78
100 €97.30
200 €96.00
250 €94.70
500 €93.41
1000 €90.81
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP BT1-3/8 Cast Iron Belt Tensioner and 1-3/8 inch Bore Insert
SKU: BT1.3/8-RHP

RHP BT1-3/8 Cast Iron Belt Tensioner and 1-3/8 inch Bore Insert

€129.73 ex VAT
€129,73
ex VAT

Description

RHP BT Series Belt Tensioner Units: Cast iron conveyor belt tensioner bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The units are designed to be used with the RHP BTHF series tensioner housings with feet for bolting in place or the RHP BTH series without feet for welding in place. The BT Tensioner unit fits inside the BTHF/BTH housing and it's position is controlled by the M12x1.75mm set screw which can be locked after adjustment is completed.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert

Technical

Bore = 1-3/8 inch
L = 10.787 inch
L1 = 8.858 inch
H = 3.858 inch
H1 = 1.673 inch
A = 0.866 inch
A1 = 1.422 inch
B = 1.688 inch
s = 0.69 inch
d1 = 1.838
Dynamic Load N = 25700
Static Load N = 15300
Rec Max Speed rpm = 4500
Weight kg = 2.3
Insert = 1035-1-3/8G
Casting group = 5
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
