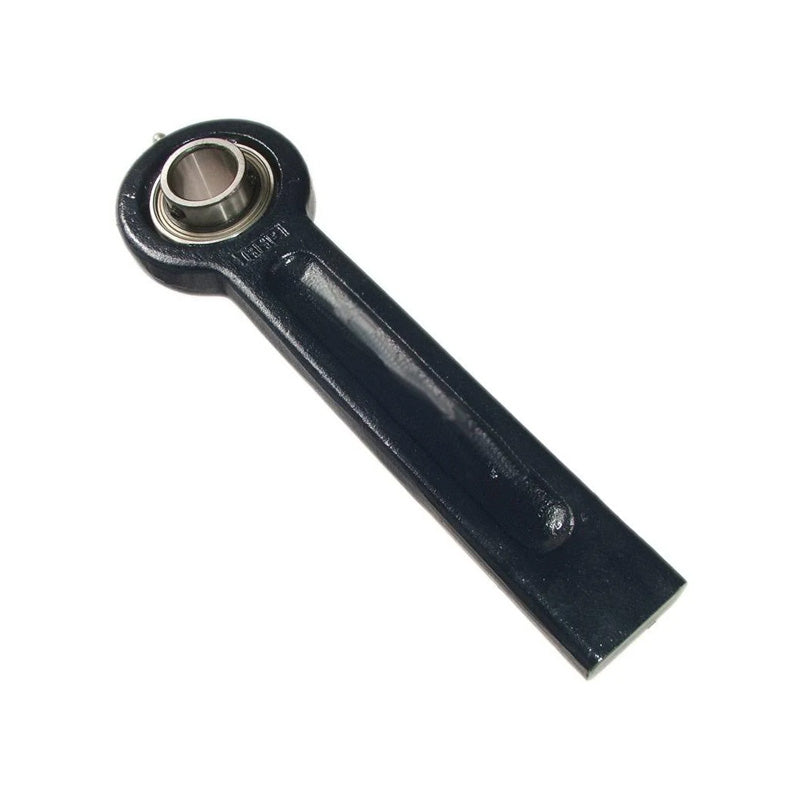

RHP BT35A Cast Iron Belt Tensioner and 35mm Bore Insert

SKU: BT35A-RHP

RHP BT35A Cast Iron Belt Tensioner and 35mm Bore Insert

€122.32 ex VAT
€122,32
ex VAT
Not in stock

Quantity Price Breaks

10 €108.86
20 €102.75
30 €101.53
40 €100.30
50 €99.08
75 €97.86
100 €91.74
200 €90.52
250 €89.29
500 €88.07
1000 €85.62
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP BT35A Cast Iron Belt Tensioner and 35mm Bore Insert
SKU: BT35A-RHP

RHP BT35A Cast Iron Belt Tensioner and 35mm Bore Insert

€122.32 ex VAT
€122,32
ex VAT

Description

RHP BT A Series Belt Tensioner Units: Cast iron conveyor belt tensioner bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The units are designed to be used with the RHP BTHF series tensioner housings with feet for bolting in place or the RHP BTH series without feet for welding in place. The BT Tensioner unit fits inside the BTHF/BTH housing and it's position is controlled by the M12x1.75mm set screw which can be locked after adjustment is completed.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

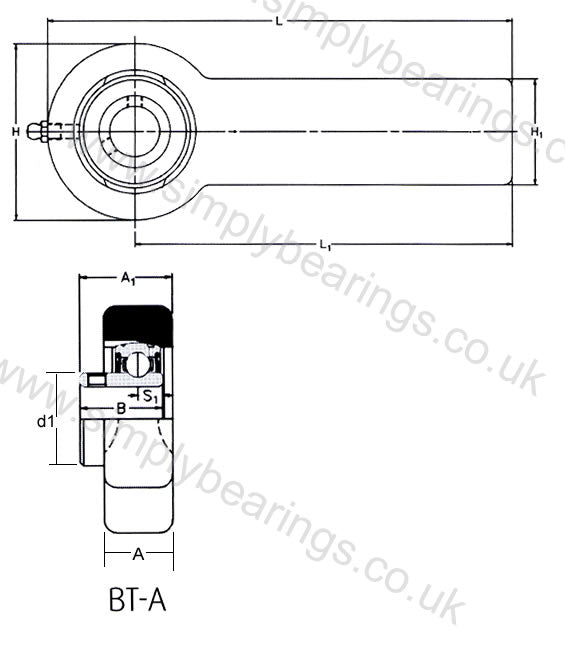

Technical

Bore = 35mm
L = 274mm
L1 = 225mm
H = 98mm
H1 = 42.5mm
A = 22mm
A1 = 36.13mm
B = 42.88mm
s1 = 9.55mm
d1 = 46.69
Dynamic Load N = 25700
Static Load N = 15300
Rec Max Speed rpm = 4500
Weight kg = 2.3
Insert = 1235-35G
Casting group = 5
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
