SKU: CF.10.BUURM

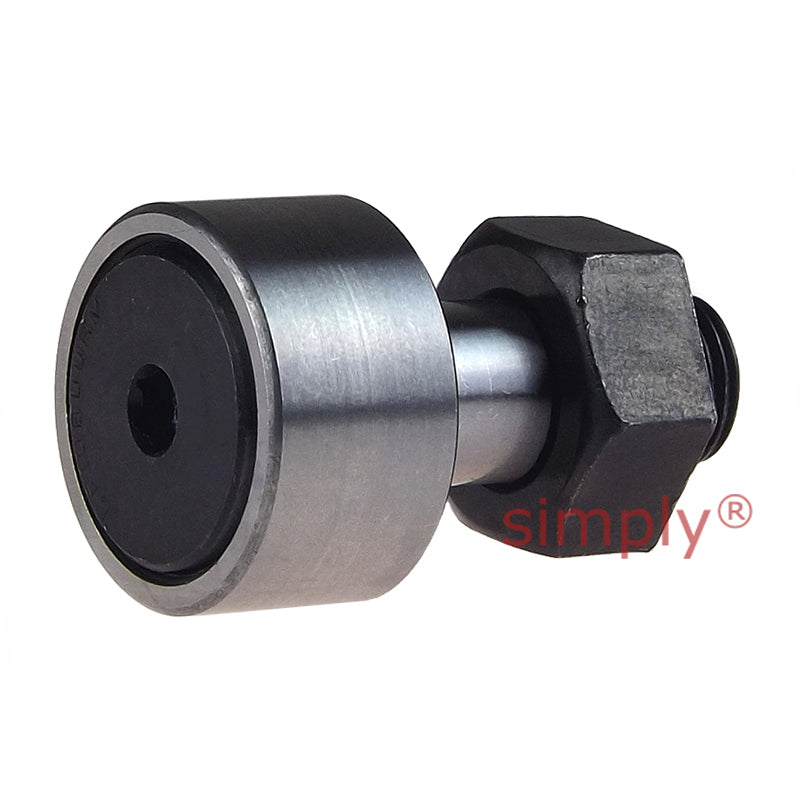

IKO CF10BUURM Hex Head Lip Sealed Crowned Cam Follower 22x12x10mm M10x1 Thread
- Regular price
- €27.17 ex VAT
- Sale price
- €27,17
- Regular price
-
In stock
Quantity Price Breaks
10
€24.18
19
€22.82
29
€22.55
39
€22.28
49
€22.01
74
€21.74
99
€20.38
199
€20.11
249
€19.83
499
€19.56
999
€19.02
SKU:
CF.10.BUURM
IKO CF10BUURM Hex Head Lip Sealed Crowned Cam Follower 22x12x10mm M10x1 Thread
- Regular price
- €27.17 ex VAT
- Sale price
- €27,17
- Regular price
-
Description
|
Standard Type Cam Follower with Hexagonal Socket: This cam follower is made from high carbon steel and has a hexagonal socket and a crowned outer ring. This cam follower has seals in the narrow clearances to prevent the penetration of foreign particles. The crowned outer ring is effective in moderating the edge load due to mounting errors. Benefits: Effective in moderating the edge load due to mounting errors, seals in the narrow clearances prevent the penetration of foreign particles. |

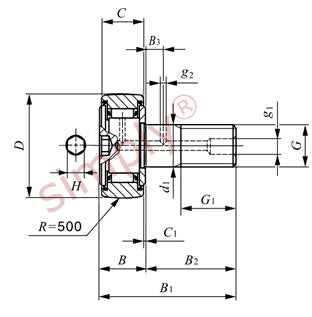

Technical
| D | = | 22mm |
| C | = | 12mm |
| d1 (Stud Diameter) | = | 10mm |
| G | = | M10x1mm |
| G1 | = | 12mm |
| B | = | 13.2mm max |
| B1 | = | 36.2mm max |
| B2 | = | 23mm |
| C1 | = | 0.6mm |
| H | = | 4mm |
| rs min | = | 0.3mm |
| Mounting dimension f min | = | 16mm |
| Maximum tightening torque | = | 13.8 N-m |
| Dynamic load C | = | 5430 N |
| Static load Co | = | 6890 N |
| Maximum allowable static load | = | 6890 N |
