SKU: CM-UCFC208D1-NTN

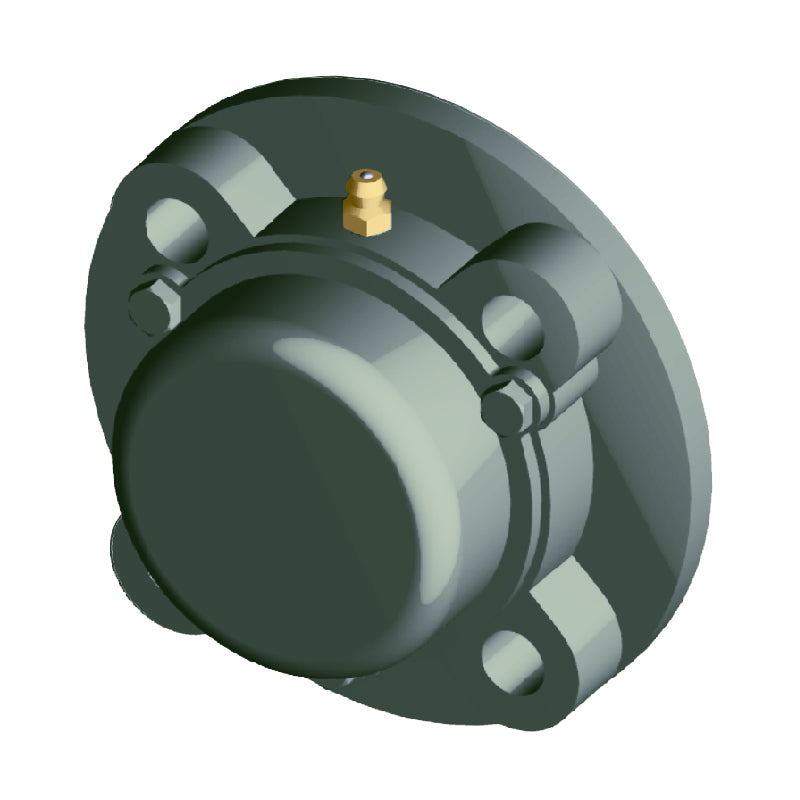

NTN CM-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Not in stock
Quantity Price Breaks
3
€52.39
4
€49.44
9
€48.85
19
€48.27
49
€47.68
99
€47.09
499
€44.15
999
€43.56
1999
€42.97
2999
€42.38
4999
€41.20
SKU:
CM-UCFC208D1-NTN
NTN CM-UCFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert with Cast Iron Cover - Closed Version - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Description
|
UCFC Series 4 Bolt Round Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication, this style has the benefit of a shouldered back face to facilitate location of the housing prior to fastening in place. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| L | = | 145mm |
| J | = | 120mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 84.9mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 11mm | |
| N | = | 14mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 10mm | |
| A< | = | sub> |
| 1C< | = | /sub> |
| = | 27.5mm | |
| A | = | 36mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 100mm | |
| B | = | 49.2mm |
| S | = | 19mm |
| t< | = | sub> |
| 2< | = | /sub> |
| = | 9mm | |
| A< | = | sub> |
| 5< | = | /sub> |
| = | 66mm | |
| Fixing bolt | = | M12 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 32.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 17.8 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 1.24 kN | |
| --- | = | Unit information |
| Mass | = | 2.4 kg |
