SKU: CNB-104

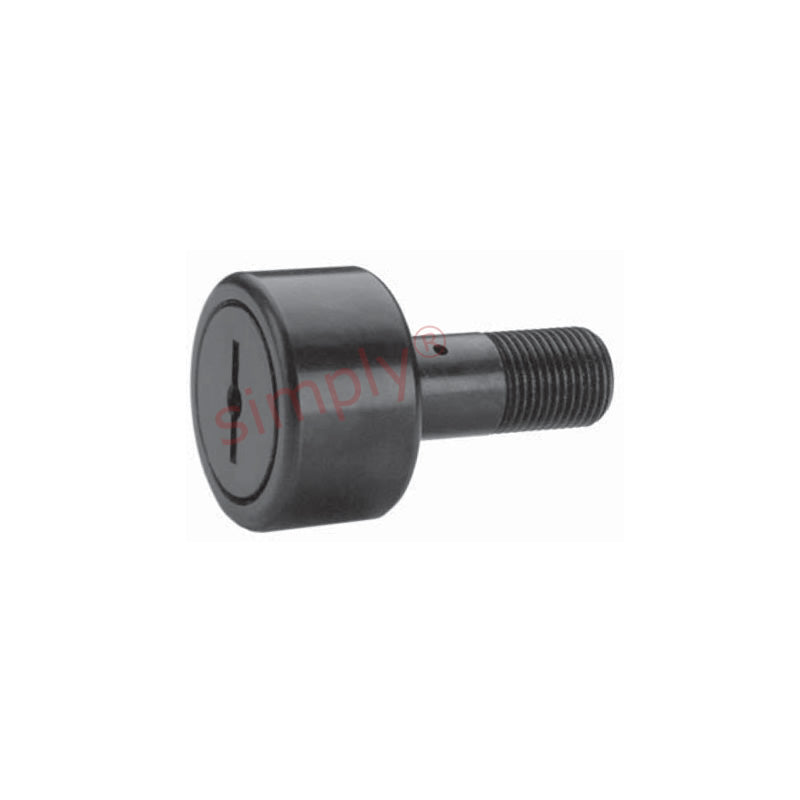

Major Brand CNB104 Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €207.30 ex VAT
- Sale price
- €207,30
- Regular price
-
Not in stock
Quantity Price Breaks
3
€184.50
4
€174.13
9
€172.06
19
€169.99
29
€167.91
39
€165.84
49
€155.48
59
€153.40
249
€151.33
499
€149.26
999
€145.11
SKU:
CNB-104
Major Brand CNB104 Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €207.30 ex VAT
- Sale price
- €207,30
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 3.25 inch |
| B | = | 1.75 inch |
| C | = | 1.25 inch |
| D | = | 2.5 inch |
| E | = | 1.25 inch |
| Thread class 2A F | = | 1-1/4-12 UNF |
| G | = | 5/8 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-3/4 inch |
| Recommended bore | = | 1.25 inch |
| Recommended torque | = | 3450 lbf-in |
| Max static capacity | = | 24910 lbs |
| Basic dynamic rating | = | 15720 lbs |
