SKU: CNB-104-SB

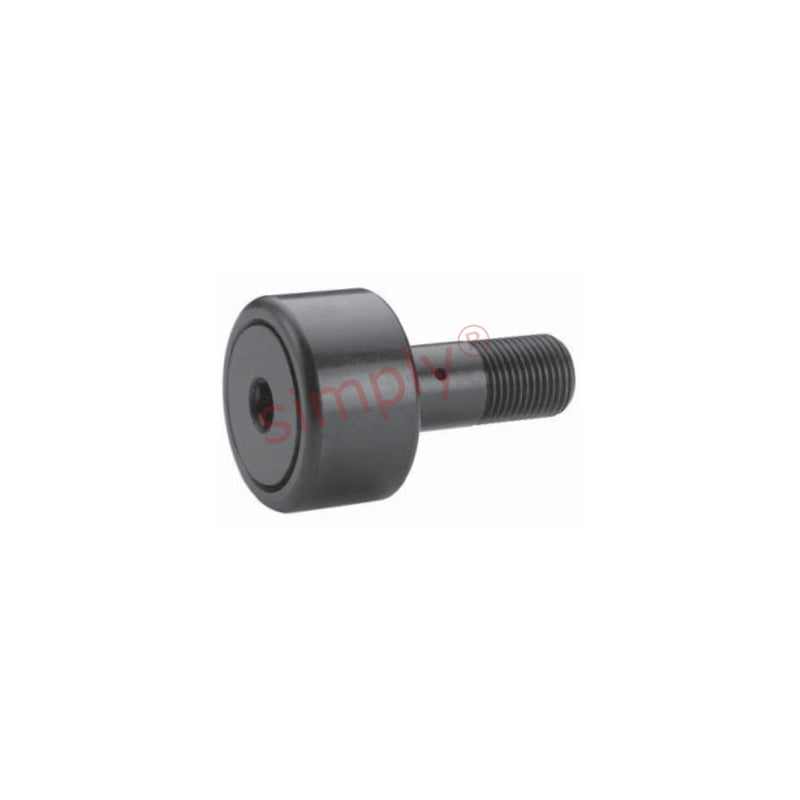

Major Brand CNB104SB Hex Head Sealed Cylindrical Cam Follower 3-1/4 inch Outside Diameter
- Regular price
- €252.78 ex VAT
- Sale price
- €252,78
- Regular price
-
Not in stock
Quantity Price Breaks
3
€224.97
4
€212.34
9
€209.81
19
€207.28
29
€204.75
39
€202.22
49
€189.59
59
€187.06
249
€184.53
499
€182.00
999
€176.95
SKU:
CNB-104-SB
Major Brand CNB104SB Hex Head Sealed Cylindrical Cam Follower 3-1/4 inch Outside Diameter
- Regular price
- €252.78 ex VAT
- Sale price
- €252,78
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 3.25 inch |
| B | = | 1.75 inch |
| C | = | 1.25 inch |
| D | = | 2.5 inch |
| E | = | 1.25 inch |
| Thread class 2A F | = | 1-1/4-12 UNF |
| G | = | 5/8 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-3/4 inch |
| Recommended bore | = | 1.25 inch |
| Recommended torque | = | 3450 lbf-in |
| Max static capacity | = | 24910 lbs |
| Basic dynamic rating | = | 15720 lbs |
