SKU: CNB-112

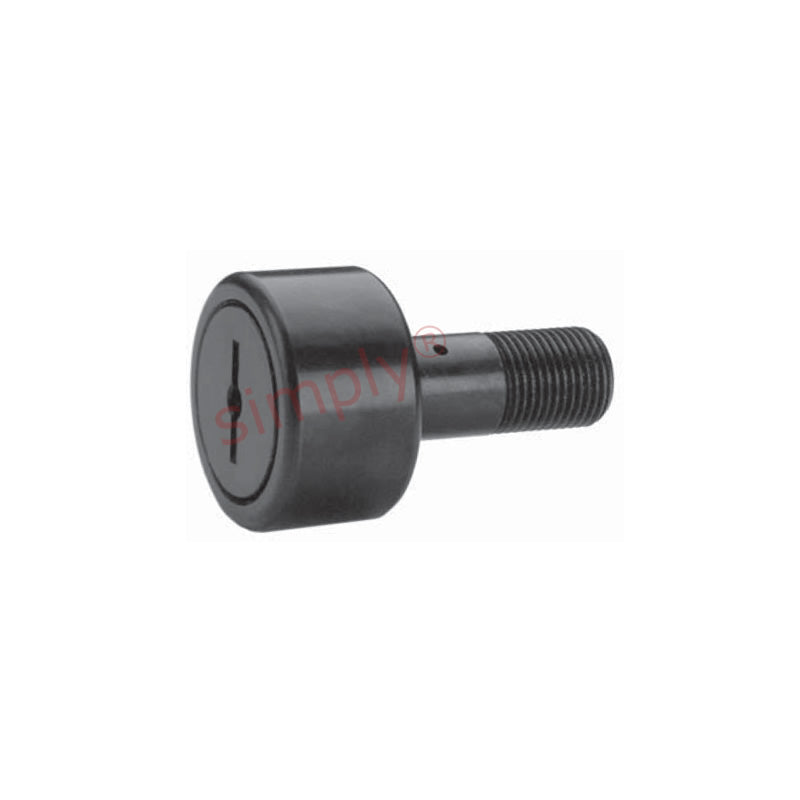

Major Brand CNB112 Slotted Cylindrical Cam Follower 3-1/2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €271.67 ex VAT
- Sale price
- €271,67
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€241.79
4
€228.20
9
€225.49
19
€222.77
29
€220.05
39
€217.34
49
€203.75
59
€201.04
249
€198.32
499
€195.60
999
€190.17
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 3.5 inch |
| B | = | 2 inch |
| C | = | 1.375 inch |
| D | = | 2.75 inch |
| E | = | 1.375 inch |
| Thread class 2A F | = | 1-3/8-12 UNF |
| G | = | 11/16 inch |
| H | = | 1/8 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 1-59/64 inch |
| Recommended bore | = | 1.375 inch |
| Recommended torque | = | 4200 lbf-in |
| Max static capacity | = | 31625 lbs |
| Basic dynamic rating | = | 22800 lbs |
