SKU: CNB-160-SB

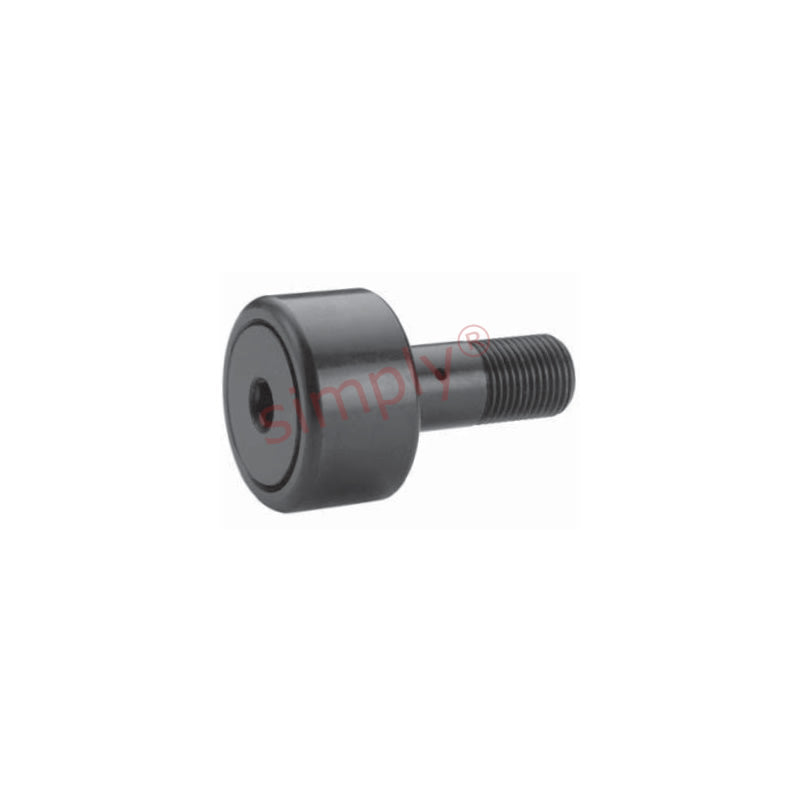

Major Brand CNB160SB Hex Head Sealed Cylindrical Cam Follower 5 inch Outside Diameter
- Regular price
- €1.446.97 ex VAT
- Sale price
- €1.446,97
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€1.287.80
4
€1.215.45
9
€1.200.99
19
€1.186.52
29
€1.172.05
39
€1.157.58
49
€1.085.23
59
€1.070.76
249
€1.056.29
499
€1.041.82
999
€1.012.88
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 5 inch |
| B | = | 2.75 inch |
| C | = | 2 inch |
| D | = | 5.062 inch |
| E | = | 2.562 inch |
| Thread class 2A F | = | 2-12 UN |
| G | = | 7/8 inch |
| H | = | 3/16 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 2-7/8 inch |
| Recommended bore | = | 2 inch |
| Recommended torque | = | 5000 lbf-in |
| Max static capacity | = | 67950 lbs |
| Basic dynamic rating | = | 46575 lbs |
