SKU: CNB-20-NSB
Major Brand CNB20NSB Hex Head Sealed Cylindrical Cam Follower 5/8 inch Outside Diameter
- Regular price
- €37.47 ex VAT
- Sale price
- €37,47
- Regular price
-
Not in stock
Quantity Price Breaks
3
€33.35
4
€31.47
9
€31.10
19
€30.73
29
€30.35
39
€29.98
49
€28.10
59
€27.73
249
€27.35
499
€26.98
999
€26.23
SKU:
CNB-20-NSB
Major Brand CNB20NSB Hex Head Sealed Cylindrical Cam Follower 5/8 inch Outside Diameter
- Regular price
- €37.47 ex VAT
- Sale price
- €37,47
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |

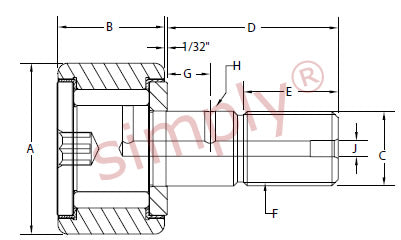

Technical
| A | = | 0.625 inch |
| B | = | 0.406 inch |
| C | = | 0.25 inch |
| D | = | 0.625 inch |
| E | = | 0.312 inch |
| Thread class 2A F | = | 1/4-28 UNF |
| Min boss diameter | = | 23/64 inch |
| Recommended bore | = | 0.25 inch |
| Recommended torque | = | 35 lbf-in |
| Max static capacity | = | 1215 lbs |
| Basic dynamic rating | = | 995 lbs |
