SKU: CNB-36

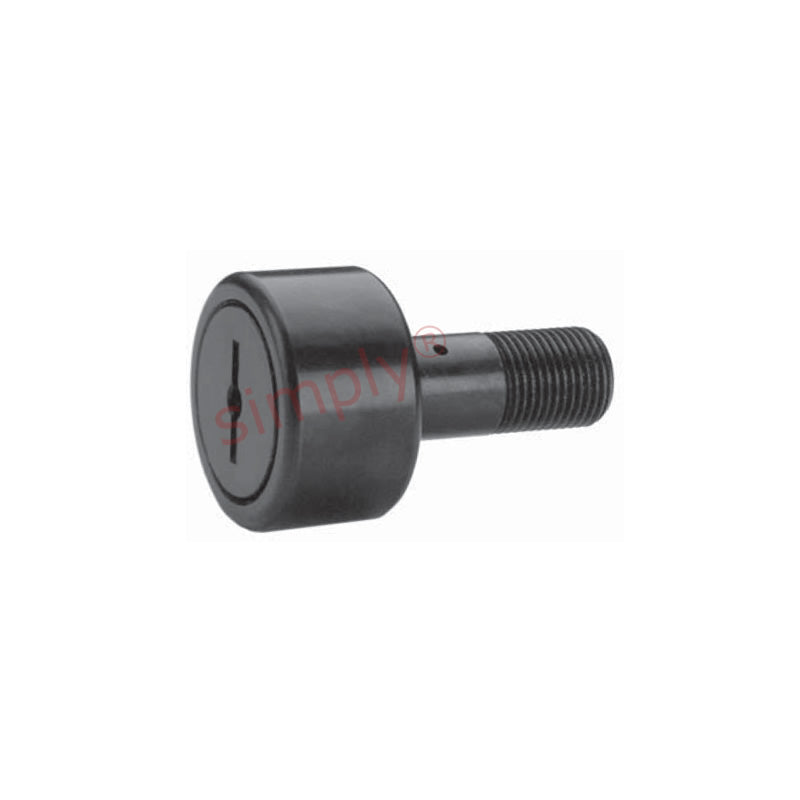

Major Brand CNB36 Slotted Cylindrical Cam Follower 1-1/8 inch Outside Diameter
- Regular price
- €37.46 ex VAT
- Sale price
- €37,46
- Regular price
-
Not in stock
Quantity Price Breaks
3
€33.34
4
€31.47
9
€31.09
19
€30.72
29
€30.34
39
€29.97
49
€28.10
59
€27.72
249
€27.35
499
€26.97
999
€26.22
SKU:
CNB-36
Major Brand CNB36 Slotted Cylindrical Cam Follower 1-1/8 inch Outside Diameter
- Regular price
- €37.46 ex VAT
- Sale price
- €37,46
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 1.125 inch |
| B | = | 0.625 inch |
| C | = | 0.4375 inch |
| D | = | 1 inch |
| E | = | 0.5 inch |
| Thread class 2A F | = | 7/16-20 UNF |
| G | = | 1/4 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 41/64 inch |
| Recommended bore | = | 0.4375 inch |
| Recommended torque | = | 250 lbf-in |
| Max static capacity | = | 3060 lbs |
| Basic dynamic rating | = | 2225 lbs |
