SKU: CNB-40
Major Brand CNB40 Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
- Regular price
- €51.88 ex VAT
- Sale price
- €51,88
- Regular price
-
In stock
Quantity Price Breaks
3
€46.17
4
€43.58
9
€43.06
19
€42.54
29
€42.02
39
€41.50
49
€38.91
59
€38.39
249
€37.87
499
€37.35
999
€36.32
SKU:
CNB-40
Major Brand CNB40 Slotted Cylindrical Cam Follower 1-1/4 inch Outside Diameter
- Regular price
- €51.88 ex VAT
- Sale price
- €51,88
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |

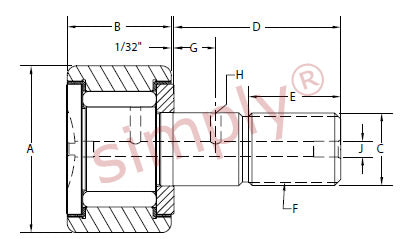

Technical
| A | = | 1.25 inch |
| B | = | 0.75 inch |
| C | = | 0.5 inch |
| D | = | 1.25 inch |
| E | = | 0.625 inch |
| Thread class 2A F | = | 1/2-20 UNF |
| G | = | 5/16 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 49/64 inch |
| Recommended bore | = | 0.5 inch |
| Recommended torque | = | 350 lbf-in |
| Max static capacity | = | 4250 lbs |
| Basic dynamic rating | = | 3930 lbs |
