SKU: CNB-48

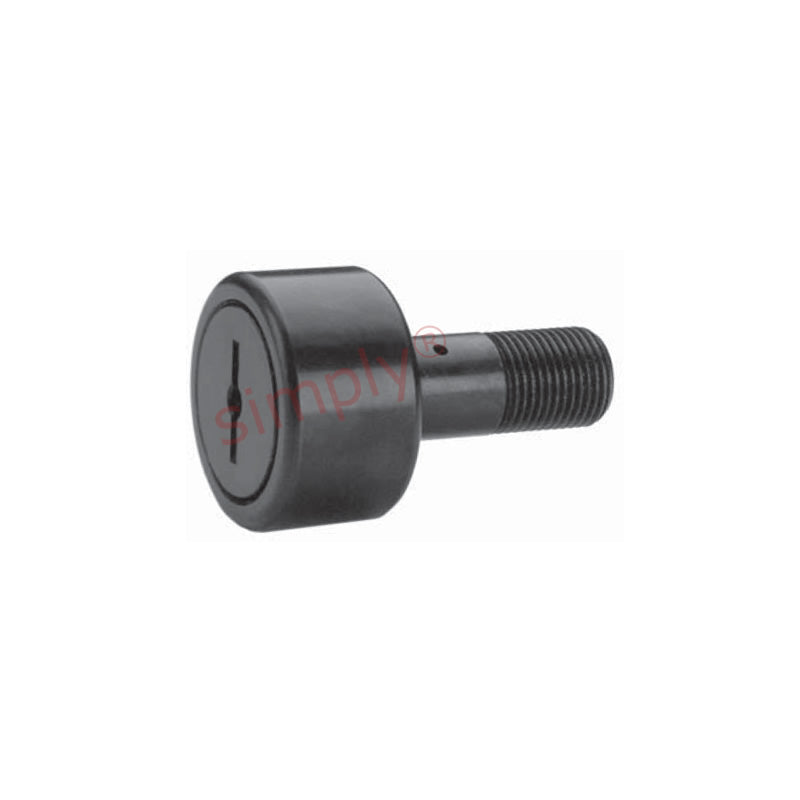

Major Brand CNB48 Slotted Cylindrical Cam Follower 1-1/2 inch Outside Diameter
- Regular price
- €49.29 ex VAT
- Sale price
- €49,29
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€43.87
4
€41.40
9
€40.91
19
€40.42
29
€39.92
39
€39.43
49
€36.97
59
€36.47
249
€35.98
499
€35.49
999
€34.50
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 1.5 inch |
| B | = | 0.875 inch |
| C | = | 0.625 inch |
| D | = | 1.5 inch |
| E | = | 0.75 inch |
| Thread class 2A F | = | 5/8-18 UNF |
| G | = | 3/8 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 57/64 inch |
| Recommended bore | = | 0.625 inch |
| Recommended torque | = | 650 lbf-in |
| Max static capacity | = | 5640 lbs |
| Basic dynamic rating | = | 4840 lbs |
