SKU: CNB-56

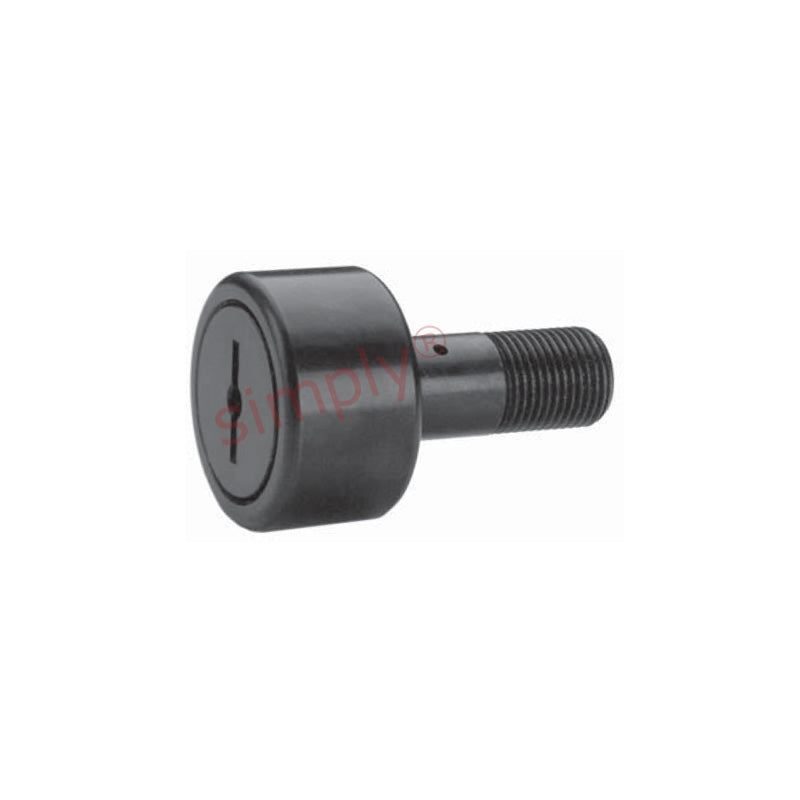

Major Brand CNB56 Slotted Cylindrical Cam Follower 1-3/4 inch Outside Diameter
- Regular price
- €64.83 ex VAT
- Sale price
- €64,83
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€57.70
4
€54.46
9
€53.81
19
€53.16
29
€52.51
39
€51.86
49
€48.62
59
€47.97
249
€47.33
499
€46.68
999
€45.38
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |
Technical
| A | = | 1.75 inch |
| B | = | 1 inch |
| C | = | 0.75 inch |
| D | = | 1.75 inch |
| E | = | 0.875 inch |
| Thread class 2A F | = | 3/4-16 UNF |
| G | = | 7/16 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 13/64 inch |
| Recommended bore | = | 0.75 inch |
| Recommended torque | = | 1250 lbf-in |
| Max static capacity | = | 7920 lbs |
| Basic dynamic rating | = | 6385 lbs |
