SKU: CNB-56-B

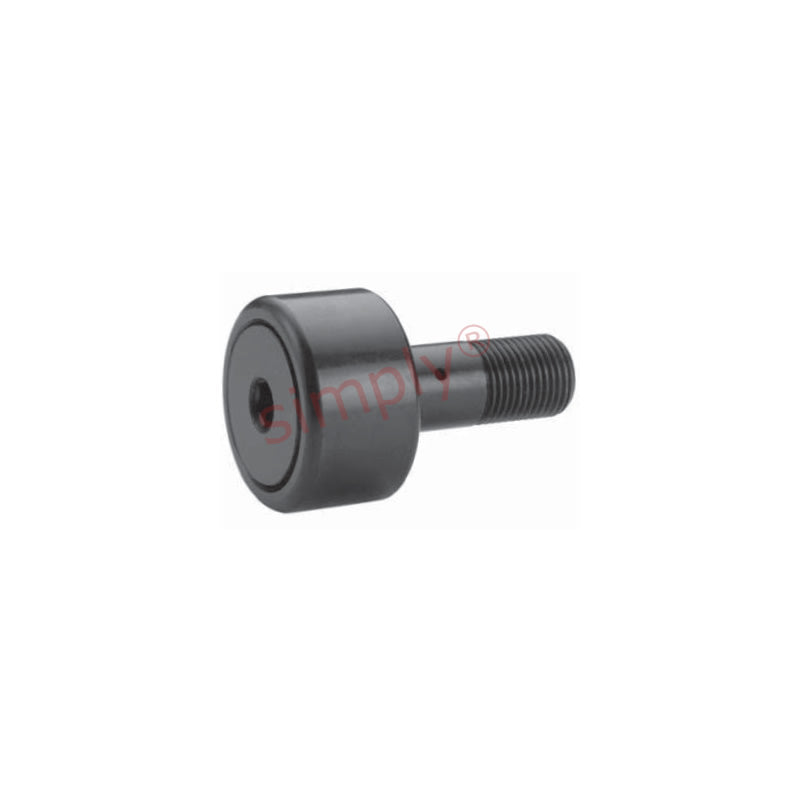

Major Brand CNB56B Hex Head Cylindrical Cam Follower 1-3/4 inch Outside Diameter Allow 7-10 Days
- Regular price
- €71.32 ex VAT
- Sale price
- €71,32
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€63.47
4
€59.91
9
€59.20
19
€58.48
29
€57.77
39
€57.06
49
€53.49
59
€52.78
249
€52.06
499
€51.35
999
€49.92
Description
|
Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
Technical
| A | = | 1.75 inch |
| B | = | 1 inch |
| C | = | 0.75 inch |
| D | = | 1.75 inch |
| E | = | 0.875 inch |
| Thread class 2A F | = | 3/4-16 UNF |
| G | = | 7/16 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-3/64 inch |
| Recommended bore | = | 0.75 inch |
| Recommended torque | = | 1250 lbf-in |
| Max static capacity | = | 7920 lbs |
| Basic dynamic rating | = | 6385 lbs |
