SKU: CNB-64-B
Major Brand CNB64B Hex Head Cylindrical Cam Follower 2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €90.37 ex VAT
- Sale price
- €90,37
- Regular price
-
Not in stock
Quantity Price Breaks
3
€80.43
4
€75.91
9
€75.01
19
€74.10
29
€73.20
39
€72.30
49
€67.78
59
€66.87
249
€65.97
499
€65.07
999
€63.26
SKU:
CNB-64-B
Major Brand CNB64B Hex Head Cylindrical Cam Follower 2 inch Outside Diameter Allow 7-10 Days
- Regular price
- €90.37 ex VAT
- Sale price
- €90,37
- Regular price
-
Description
|

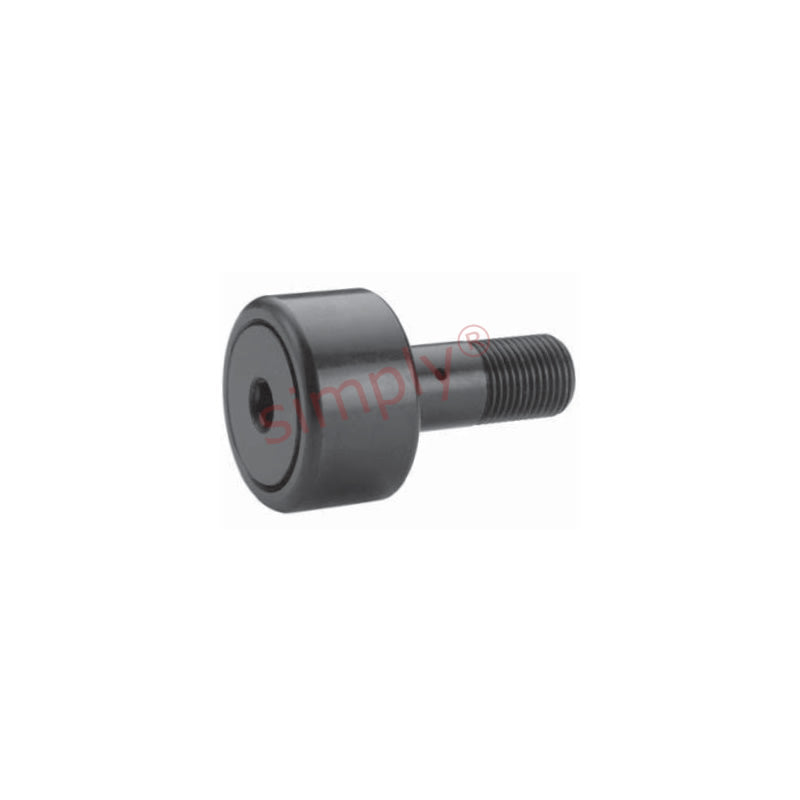

Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, provides ease of installing with a hex wrench. |
Technical
| A | = | 2 inch |
| B | = | 1.25 inch |
| C | = | 0.875 inch |
| D | = | 2 inch |
| E | = | 1 inch |
| Thread class 2A F | = | 7/8-14 UNF |
| G | = | 1/2 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-13/64 inch |
| Recommended bore | = | 0.875 inch |
| Recommended torque | = | 1500 lbf-in |
| Max static capacity | = | 10570 lbs |
| Basic dynamic rating | = | 8090 lbs |
