SKU: CNB-64-SB

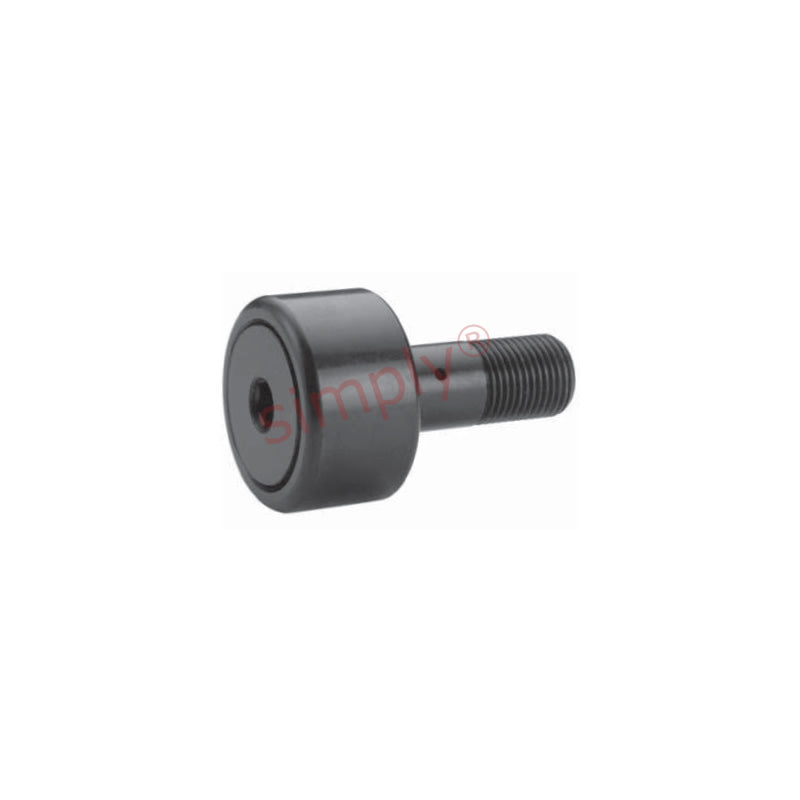

Major Brand CNB64SB Hex Head Sealed Cylindrical Cam Follower 2 inch Outside Diameter
- Regular price
- €100.50 ex VAT
- Sale price
- €100,50
- Regular price
-
In stock
Quantity Price Breaks
3
€89.45
4
€84.42
9
€83.42
19
€82.41
29
€81.41
39
€80.40
49
€75.38
59
€74.37
249
€73.37
499
€72.36
999
€70.35
SKU:
CNB-64-SB
Major Brand CNB64SB Hex Head Sealed Cylindrical Cam Follower 2 inch Outside Diameter
- Regular price
- €100.50 ex VAT
- Sale price
- €100,50
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |

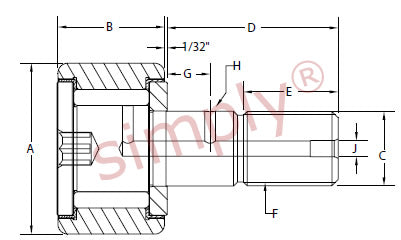

Technical
| A | = | 2 inch |
| B | = | 1.25 inch |
| C | = | 0.875 inch |
| D | = | 2 inch |
| E | = | 1 inch |
| Thread class 2A F | = | 7/8-14 UNF |
| G | = | 1/2 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-13/64 inch |
| Recommended bore | = | 0.875 inch |
| Recommended torque | = | 1500 lbf-in |
| Max static capacity | = | 10570 lbs |
| Basic dynamic rating | = | 8090 lbs |
