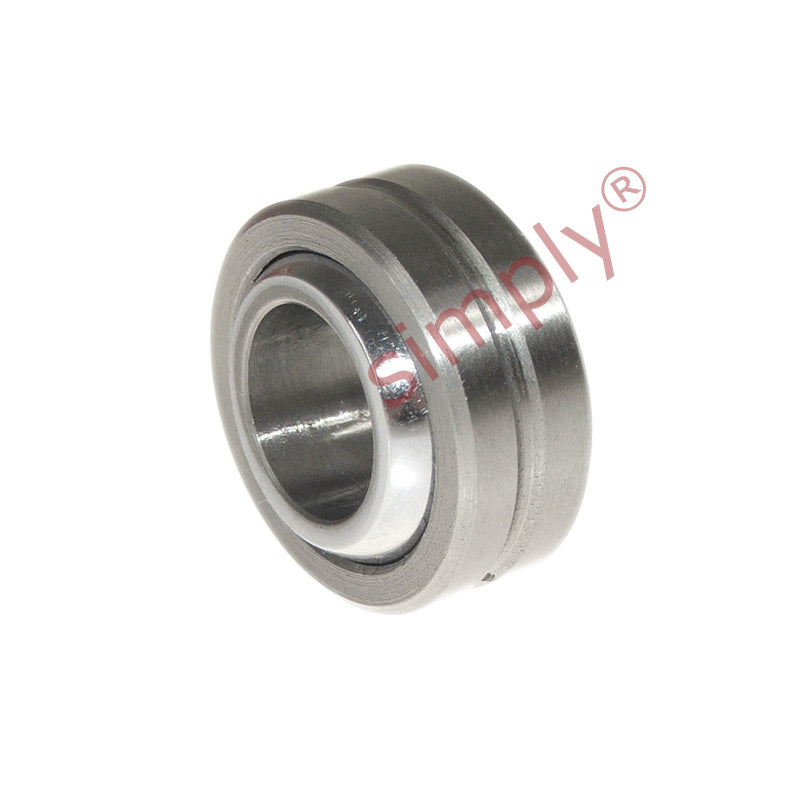

COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore

SKU: COM06T-EU

COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore

€7.80 ex VAT
€7,80
ex VAT
In stock

Quantity Price Breaks

10 €6.94
19 €6.55
29 €6.47
39 €6.40
49 €6.32
74 €6.24
99 €5.85
199 €5.77
249 €5.69
499 €5.62
999 €5.46
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore
SKU: COM06T-EU

COM06T PTFE Lined Imperial Spherical Plain Bearing 3/8 inch Bore

€7.80 ex VAT
€7,80
ex VAT

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Technical

b = 3/8 inch
w = 13/32 inch
h = 5/16 inch
D = 53/64 inch
O = 0.516 inch
Static load = 37361 N
