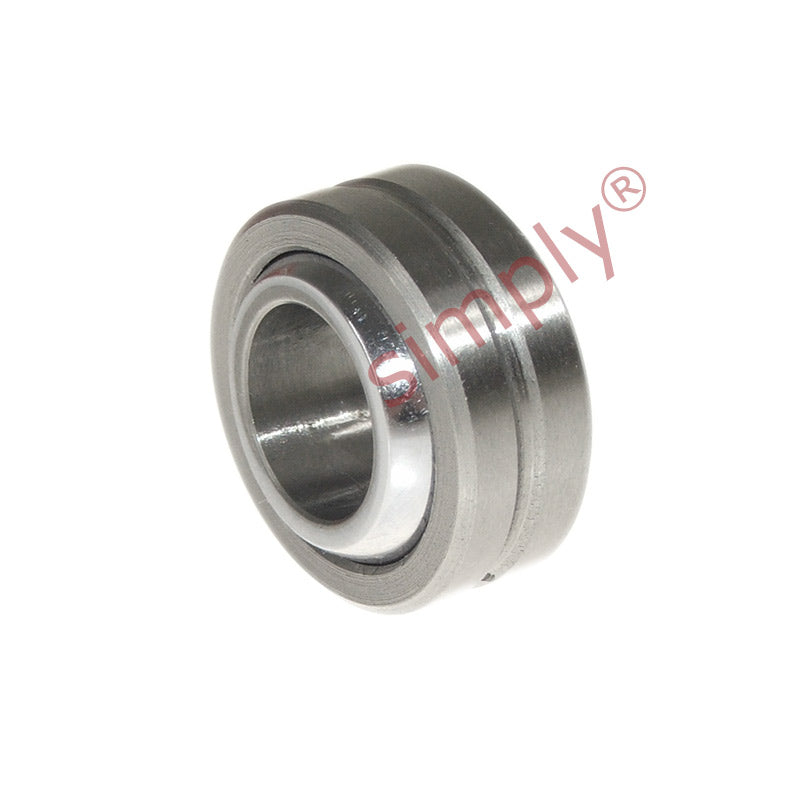

COM12T PTFE Lined Imperial Spherical Plain Bearing 3/4 inch Bore
SKU: COM12T-EU

COM12T PTFE Lined Imperial Spherical Plain Bearing 3/4 inch Bore

€12.18 ex VAT
€12,18
ex VAT

Description

Spherical Plain Bearing: COM T series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. The T design incorporates a thin PTFE fabric between the ball and the outer ring. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Technical

b = 3/4 inch
w = 3/4 inch
h = 19/32 inch
D = 1-7/16 inch
O = 0.92 inch
Static load = 141982 N
