SKU: CSA.202

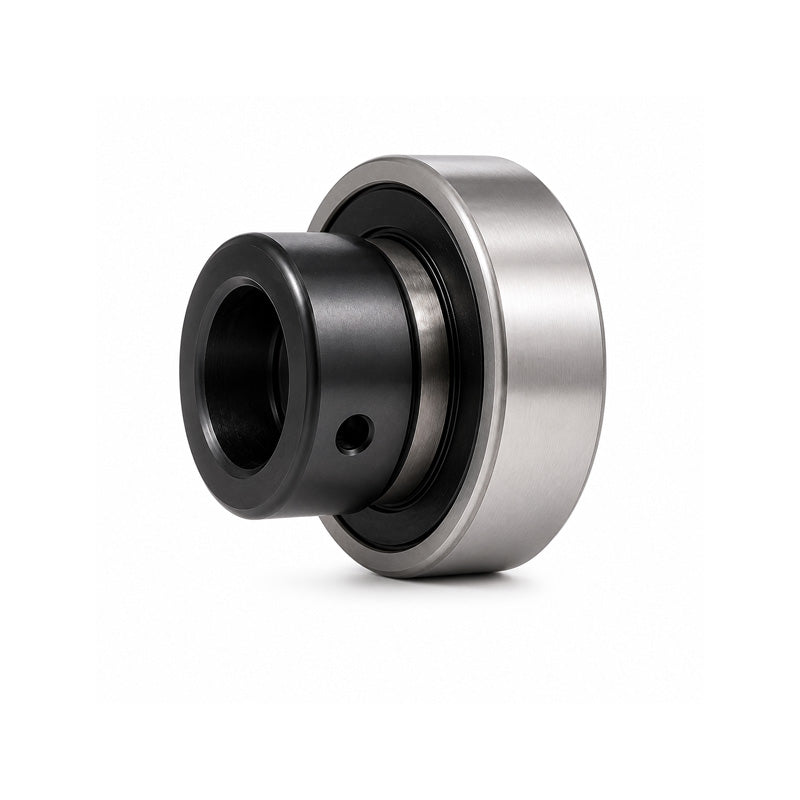

CSA202 Metric Bearing Insert with Locking Collar 15mm Bore 40mm Outside Dia
- Regular price
- €14.20 ex VAT
- Sale price
- €14,20
- Regular price
-
In stock
Quantity Price Breaks
3
€12.64
4
€11.93
9
€11.79
19
€11.64
49
€11.50
99
€11.36
499
€10.65
999
€10.51
1999
€10.37
2999
€10.22
4999
€9.94
SKU:
CSA.202
CSA202 Metric Bearing Insert with Locking Collar 15mm Bore 40mm Outside Dia
- Regular price
- €14.20 ex VAT
- Sale price
- €14,20
- Regular price
-
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
Technical
| d | = | 15mm |
| Be | = | 12mm |
| D | = | 40mm |
| z | = | 19.1mm |
| n | = | 6mm |
| m | = | 13.1mm |
| Bi | = | 28.6mm |
| k | = | 28.6mm |
| H | = | 13.5mm |
| G | = | 5mm |
| h | = | 3.6mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.13 kg |
| Dynamic load | = | 960 kgf |
| Static load | = | 480 kgf |
