SKU: CSA.204

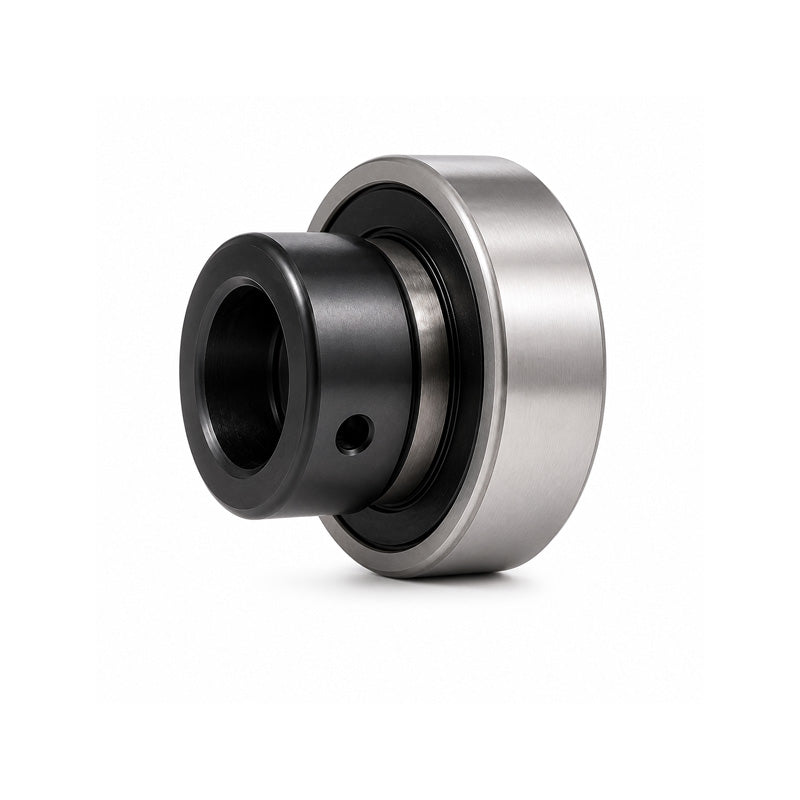

CSA204 Metric Bearing Insert with Locking Collar 20mm Bore 47mm Outside Dia
- Regular price
- €10.73 ex VAT
- Sale price
- €10,73
- Regular price
-
In stock
Quantity Price Breaks
3
€9.55
4
€9.01
9
€8.91
19
€8.80
49
€8.69
99
€8.58
499
€8.05
999
€7.94
1999
€7.83
2999
€7.73
4999
€7.51
SKU:
CSA.204
CSA204 Metric Bearing Insert with Locking Collar 20mm Bore 47mm Outside Dia
- Regular price
- €10.73 ex VAT
- Sale price
- €10,73
- Regular price
-
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
Technical
| d | = | 20mm |
| Be | = | 14mm |
| D | = | 47mm |
| z | = | 21.5mm |
| n | = | 7.0mm |
| m | = | 14.5mm |
| Bi | = | 31mm |
| k | = | 33.3mm |
| H | = | 13.5mm |
| G | = | 5mm |
| h | = | 3.9mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.15 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
