SKU: CSA.206

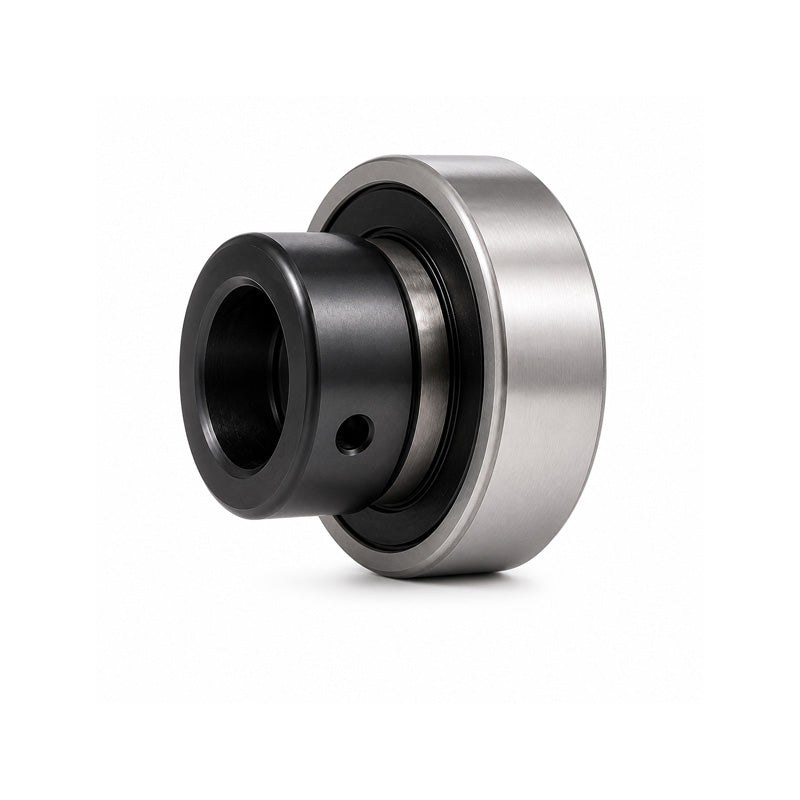

CSA206 Metric Bearing Insert with Locking Collar 30mm Bore 62mm Outside Dia
- Regular price
- €14.38 ex VAT
- Sale price
- €14,38
- Regular price
-
In stock
Quantity Price Breaks
3
€12.80
4
€12.08
9
€11.94
19
€11.79
49
€11.65
99
€11.50
499
€10.79
999
€10.64
1999
€10.50
2999
€10.35
4999
€10.07
SKU:
CSA.206
CSA206 Metric Bearing Insert with Locking Collar 30mm Bore 62mm Outside Dia
- Regular price
- €14.38 ex VAT
- Sale price
- €14,38
- Regular price
-
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
Technical
| d | = | 30mm |
| Be | = | 16mm |
| D | = | 62mm |
| z | = | 23.8mm |
| n | = | 8mm |
| m | = | 15.8mm |
| Bi | = | 35.7mm |
| k | = | 44.5mm |
| H | = | 15.9mm |
| G | = | 6mm |
| h | = | 5mm |
| Grub screw | = | M8X1.0 |
| Weight | = | 0.3 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
