SKU: CSA.208-24

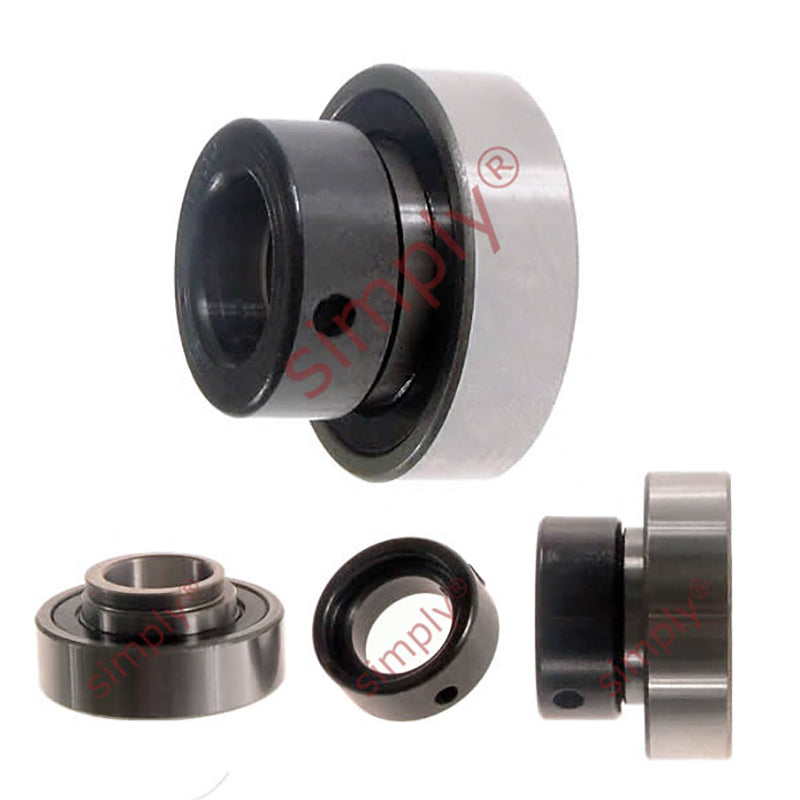

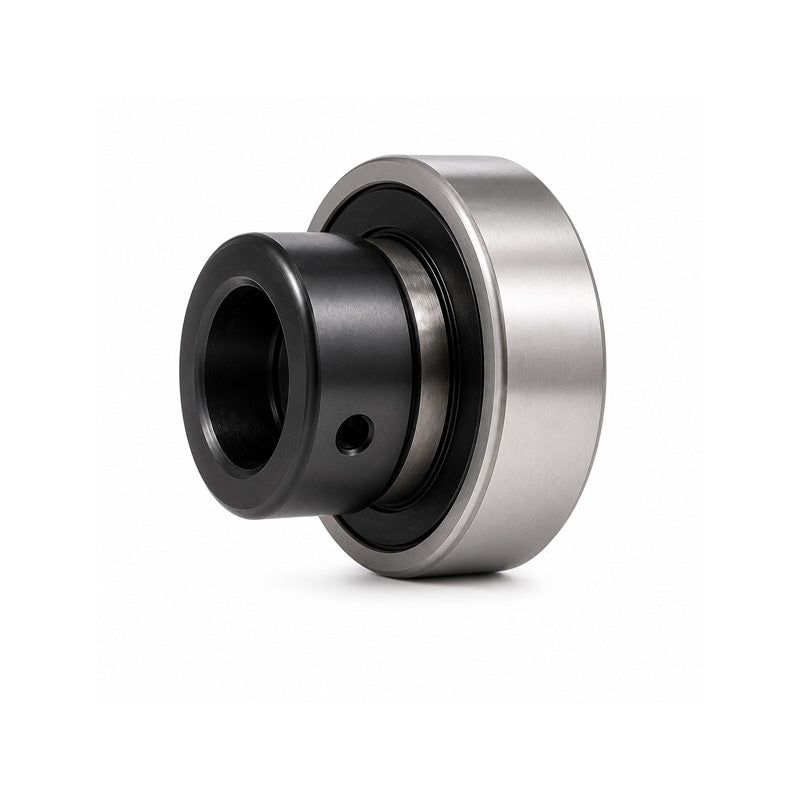

CSA208-24 Imperial Bearing Insert with Locking Collar 1-1/2 inch Bore 80mm Outside Dia
- Regular price
- €22.31 ex VAT
- Sale price
- €22,31
- Regular price
-
In stock
Quantity Price Breaks
3
€19.86
4
€18.74
9
€18.52
19
€18.29
49
€18.07
99
€17.85
499
€16.73
999
€16.51
1999
€16.29
2999
€16.06
4999
€15.62
SKU:
CSA.208-24
CSA208-24 Imperial Bearing Insert with Locking Collar 1-1/2 inch Bore 80mm Outside Dia
- Regular price
- €22.31 ex VAT
- Sale price
- €22,31
- Regular price
-
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |

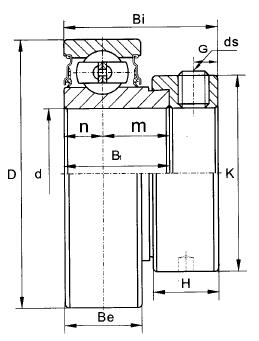

Technical
| d | = | 1-1/2 inch |
| Be | = | 18mm |
| D | = | 80mm |
| z | = | 30.2mm |
| n | = | 9mm |
| m | = | 21.2mm |
| Bi | = | 43.7mm |
| k | = | 60.3mm |
| H | = | 18.3mm |
| G | = | 6.5mm |
| h | = | 6mm |
| Grub screw | = | 5/16" |
| -24UNF | = | Weight |
| 0.67 kg | = | Dynamic load |
| 2560 kgf | = | Static load |
| 1810 kgf | = | N/A |
