SKU: CSA.212

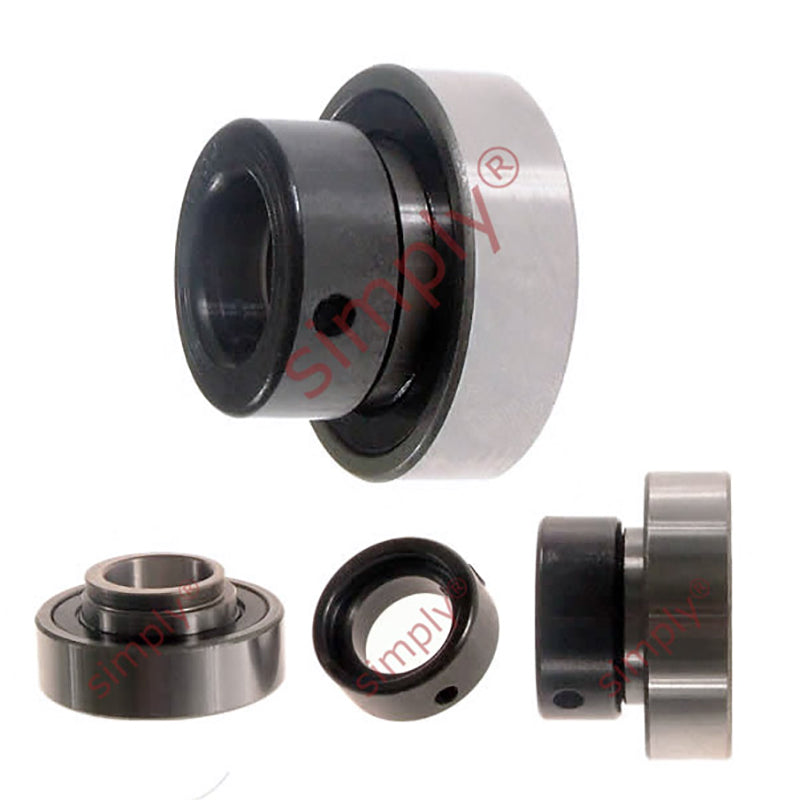

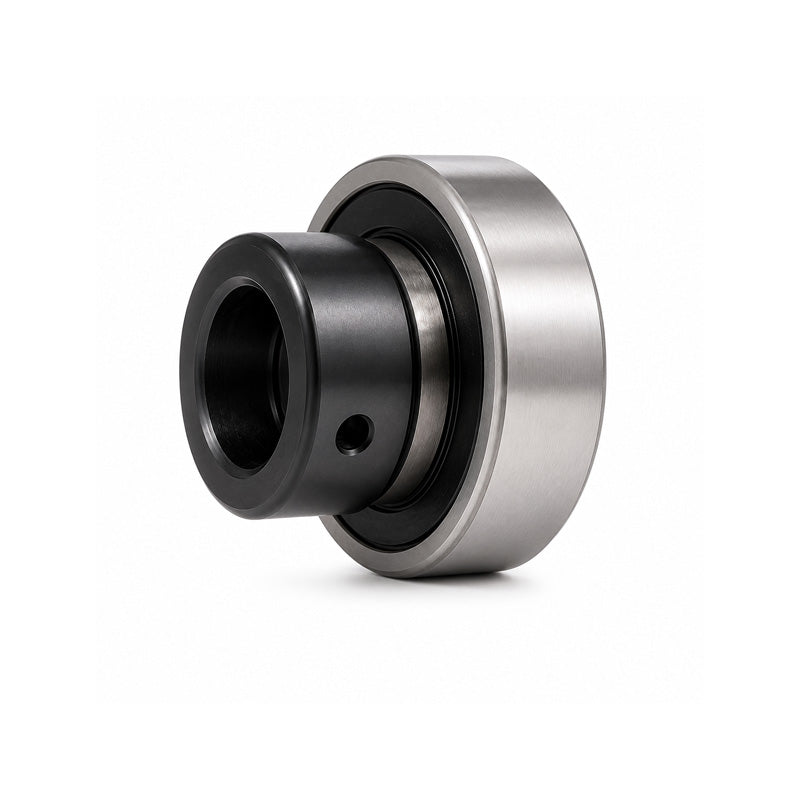

CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
- Regular price
- €42.39 ex VAT
- Sale price
- €42,39
- Regular price
-
In stock
Quantity Price Breaks
3
€37.73
4
€35.61
9
€35.18
19
€34.76
49
€34.34
99
€33.91
499
€31.79
999
€31.37
1999
€30.94
2999
€30.52
4999
€29.67
SKU:
CSA.212
CSA212 Metric Bearing Insert with Locking Collar 60mm Bore 110mm Outside Dia
- Regular price
- €42.39 ex VAT
- Sale price
- €42,39
- Regular price
-
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
Technical
| d | = | 60mm |
| Be | = | 24mm |
| D | = | 110mm |
| z | = | 33.4mm |
| n | = | 12mm |
| m | = | 21.4mm |
| Bi | = | 53.1mm |
| k | = | 84.2mm |
| H | = | 22.3mm |
| G | = | 8mm |
| h | = | 8mm |
| Grub screw | = | M10X1.0 |
| Weight | = | 1.3 kg |
| Dynamic load | = | 4850 kgf |
| Static load | = | 2960 kgf |
