SKU: CSB.204

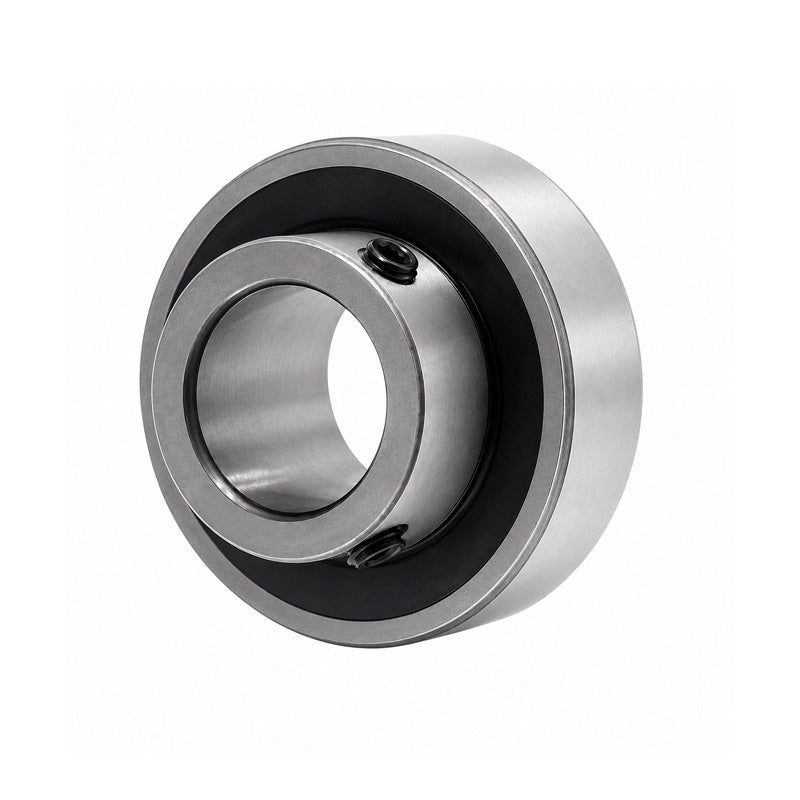

CSB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- €9.31 ex VAT
- Sale price
- €9,31
- Regular price
-
In stock
Quantity Price Breaks
3
€8.29
4
€7.82
9
€7.73
19
€7.63
49
€7.54
99
€7.45
499
€6.98
999
€6.89
1999
€6.80
2999
€6.70
4999
€6.52
SKU:
CSB.204
CSB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- €9.31 ex VAT
- Sale price
- €9,31
- Regular price
-
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |

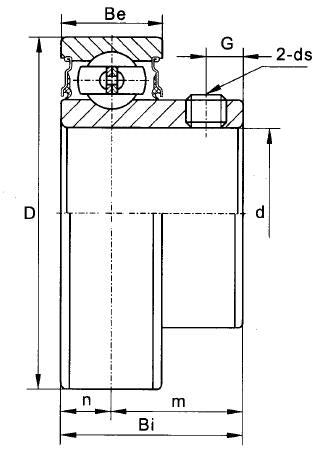

Technical
| d | = | 20mm |
| Be | = | 14mm |
| D | = | 47mm |
| Bi | = | 25mm |
| n | = | 7mm |
| m | = | 18mm |
| G | = | 4.5mm |
| h | = | 3.9mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.15 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
